Product Details
＋

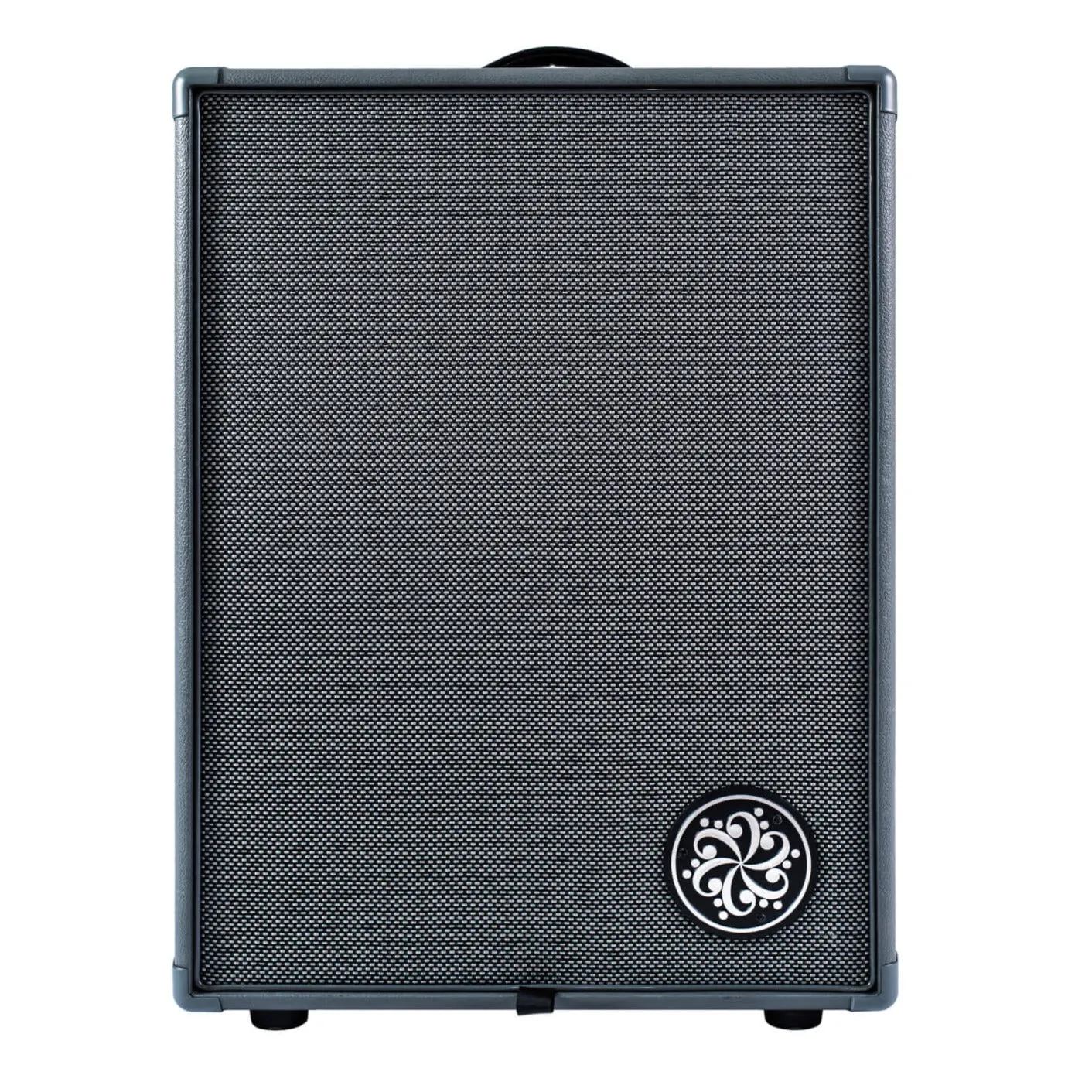

A powerful 500 Watt amplifier loaded with custom-made Eminence® speakers, the Infinity Combo Series is designed for the modern bass player. Its user-friendly interface and cloud-storable presets allow for seamless transitions between different sounds on the go. Its sonic versatility makes it ideal for live performances and practice sessions of various genres.
Top Panel Features
- Input Jack: Use this jack to connect your instrument via a standard ¼” mono cable.
- Headphone Output: Connect your Headphones and enjoy an IR emulating your cabinet sound.
- Preset: Pressing the preset button changes through presets 1 to 5 and a bypass signal. Long press to store the current preset.
- Input: Controls the amount of analog input gain. Press to activate/deactivate the effects loop for the preset.
- Compression: Controls the amount of dynamic compression. The make up gain is adjusted automatically. Press to select between compressor OFF/Pre/Post drive position.
- Drive: Controls the amount of gain of the selected drive mode. Press to select between: OFF/Leo Bass/Vintage Microtubes/Microtubes B3K/Alpha·Omega. Long press to access the Noise Gate threshold control.
- Tone: Controls the Drivel tone/ Octaver filter. Press to select which control is active.
- Level: Controls the Drive level/ Tweeter level. Press to select which control is active.
- Blend: Controls the Drive blend/ Octaver blend. Press to select which control is active.
- Preset Vol: Controls the preset volume. Press to toggle between the 7 IR slots/IR bypass for Post DI & Headphone OUT.
- Graphic EQ section: Preset-specific Darkglass EQ. ± 12 dB @ Low Shelf/250 Hz/500 Hz/1.5 kHz/3 kHz/High Shelf.
- Master: Controls the overall volume of the speaker and headphone outputs. Press for Mute Tuner. Long press for Bluetooth pairing. (Audio Suite).
Back Panel Features
- AC Power ON/OFF: Power ON the combo beast.
- AC Socket: Use this connector to feed electric power to the amplifier. 100 – 230 VAC, 50-60Hz. Set the voltage selector switch to the correct position before turning on the amplifier!
- MIDI In: Standard DIN connector. Use the 7-pin MIDI connector only with the Darkglass MIDI footswitch, and use a 5-pin connector with other MIDI equipment.
- USB: The USB-C port unlocks Combo’s USB audio interface capabilities and allows connection to the Darkglass Suite. USB MIDI In/Out is also supported.
- Post DI Output: Use this connector to send your signal to the console, mic preamp, interface, etc. This output provides the processed signal with or without the IR.
- Ground Lift: Use this control to lift the ground of the XLR outputs. If you are experiencing ground noise in your DI signal, try changing this control.
- Pre DI Out: Use this connector to send your signal to the console, mic preamp, interface, etc. This output provides the unprocessed signal.
- Line Out: Use this connector to send your signal to line input of a console, interface, etc. This output provides the processed signal without the IR. You can also link several combos together using this output!
- Line In: This input accepts 4 dBu line level signals from an amp modeler, keyboard, etc. Use this input when linking Darkglass Combos.
- Send: Use this output to send the signal to your outboard gear.
- Return: Use this input to receive the signal from your outboard gear.
- External Speaker: Use this connector to connect the amplifier to an external speaker cabinet. The SpeakON Combo jack allows for SpeakON or ¼” speaker cable operation. The minimum load impedance is 8 Ω. The minimum power rating must be 250 W.
WARNING: Do not use an instrument cable with this jack. Using an instrument cable can damage your amplifier.
Technical details
- Woofers: Custom Design Eminence® Speaker
- Horn: WGS-410
- Cabinet Material: Balsa Wood
- Power Rating RMS: 500 Watts
Dimensions
- Width: 46.5 cm / 18.3″
- Depth: 61.1 cm / 24″
- Height: 39.5 cm / 15.55″
- Weight: 17.3 kg / 38.13 lb
WARNING: This device can emit extremely loud sounds that might result in temporary or permanent hearing loss. Please proceed with caution when setting and adjusting the volume.
