Description

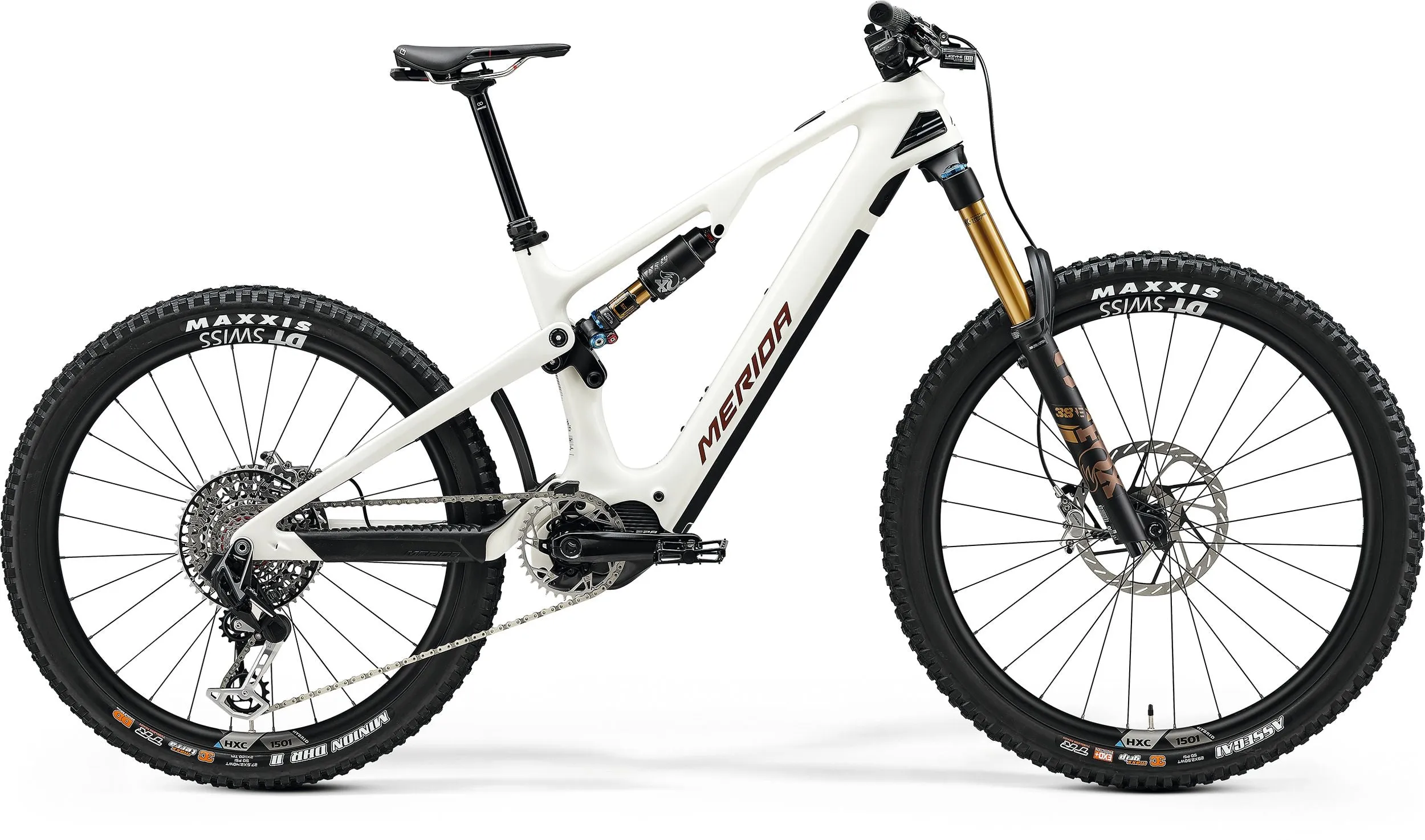

Why accept compromises? The eONE-SIXTY 10K is a lightweight, full-power e-bike that can tackle the toughest trails, whether you're racing against the clock - or just racing to get in more runs. The full CF4 carbon frame offers uncompromised handling and we've paired it with the best kit money can buy, including SRAM's wireless XX T-type drivetrain and top-end Fox suspension. The built-in 600 Wh battery plus the optional 360 Wh range extender means you can go lightweight or long, whatever suits you.
Lightweight or full power? How about both? The eONE-SIXTY CF combines an enduro-ready lightweight full carbon chassis with a full-support motor, 600 Wh battery and an optional 360 Wh range extender, so you don't have to choose between precise, playful handling, decent range or support that'll get you up the trickiest technical sections. With 170 mm travel at the front and 174 mm at the rear, it's designed to be perfectly at home on a race track or just hitting the trails on repeat. We've also married the award-winning FAST kinematic suspension and AGILOMETER sizing of our ONE-SIXTY enduro bike with our proven e-bike heritage, so it's quite the thoroughbred bloodline. Our low-maintenance flexstay suspension offers size-tuned progression to maximise performance for all sizes of riders, plus you can run it with the latest coil shocks. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focussed full 29er setup without messing up the geometry, thanks to our flip chip design. We've created a geometry that can take on the toughest enduro trails while maintaining a playful and fun character. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whatever suits you.
Specification
Geometry
FRAME SIZE | XS | SM | MD | LG | XL |
TYRE SIZES | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
ST SEAT TUBE [MM] | 405 | 420 | 440 | 470 | 500 |
TT TOP TUBE [MM] | 563 | 584 | 605 | 629 | 652 |
CS CHAIN STAY LENGTH [MM] | 439.5 | 439.5 | 439.5 | 439.5 | 439.5 |
HTA HEAD TUBE ANGLE [°] | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 |
STA SEAT TUBE ANGLE [°] | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
BD BOTTOM BRACKET DROP [MM] | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
HT HEAD TUBE [MM] | 110 | 115 | 120 | 135 | 150 |
FL FORK LENGTH [MM] | 571 | 571 | 571 | 571 | 571 |
R REACH [MM] | 400 | 420 | 440 | 460 | 480 |
S STACK [MM] | 628.5 | 633 | 637.5 | 651.5 | 665 |
WB WHEEL BASE [MM] | 1168 | 1190 | 1212 | 1238.5 | 1265 |
SH STAND OVER HEIGHT [MM] | 742 | 737 | 733 | 740 | 754 |
Size
FRAME SIZE | BODY HEIGHT |
XS | < 163 cm |
S | 157 - 173 cm |
M | 167 - 183 cm |
L | 177 - 190 cm |
XL | > 187 cm |
