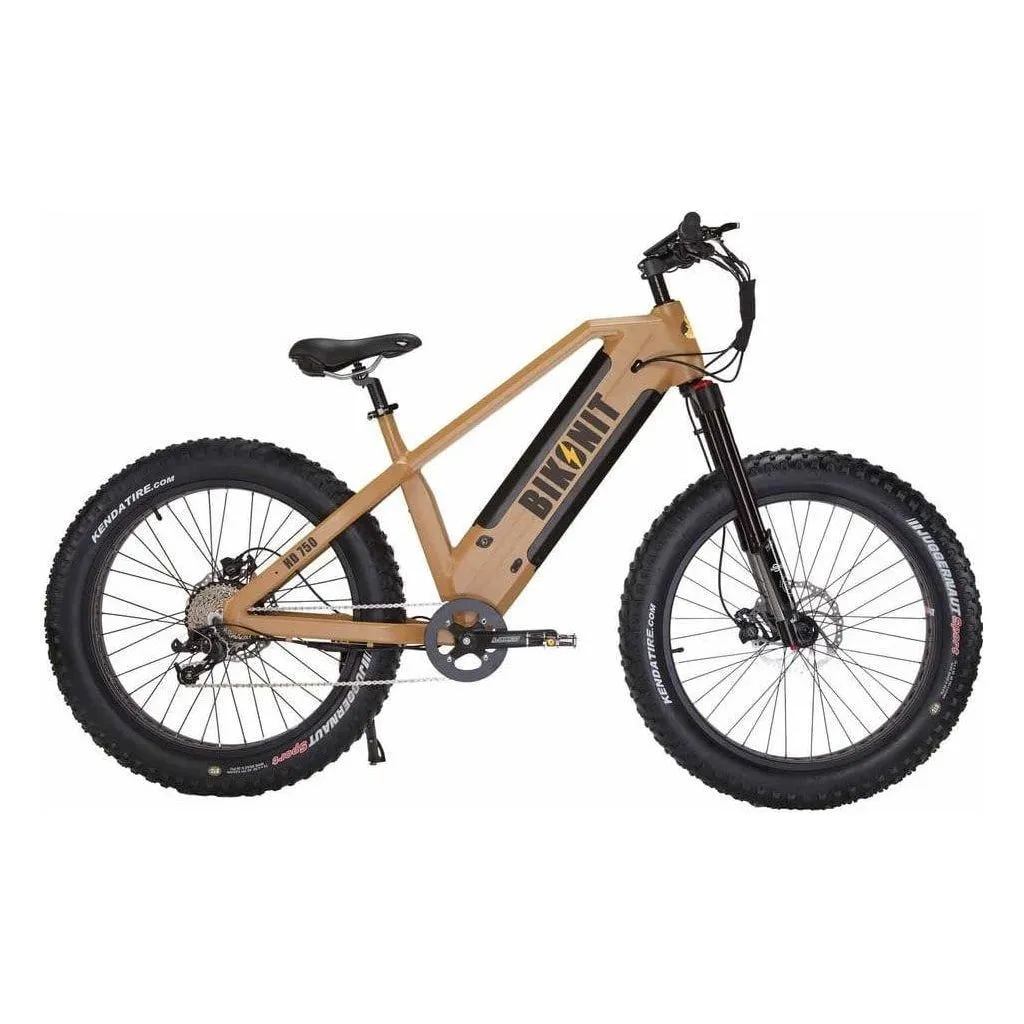

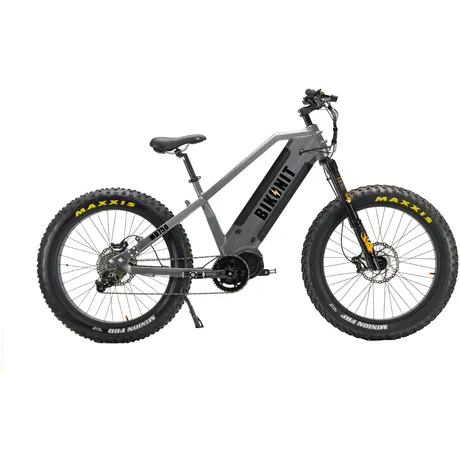

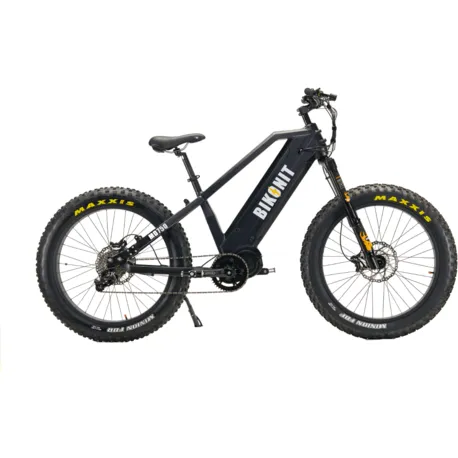

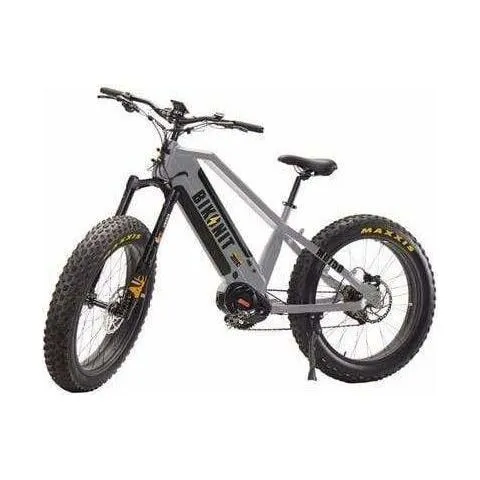

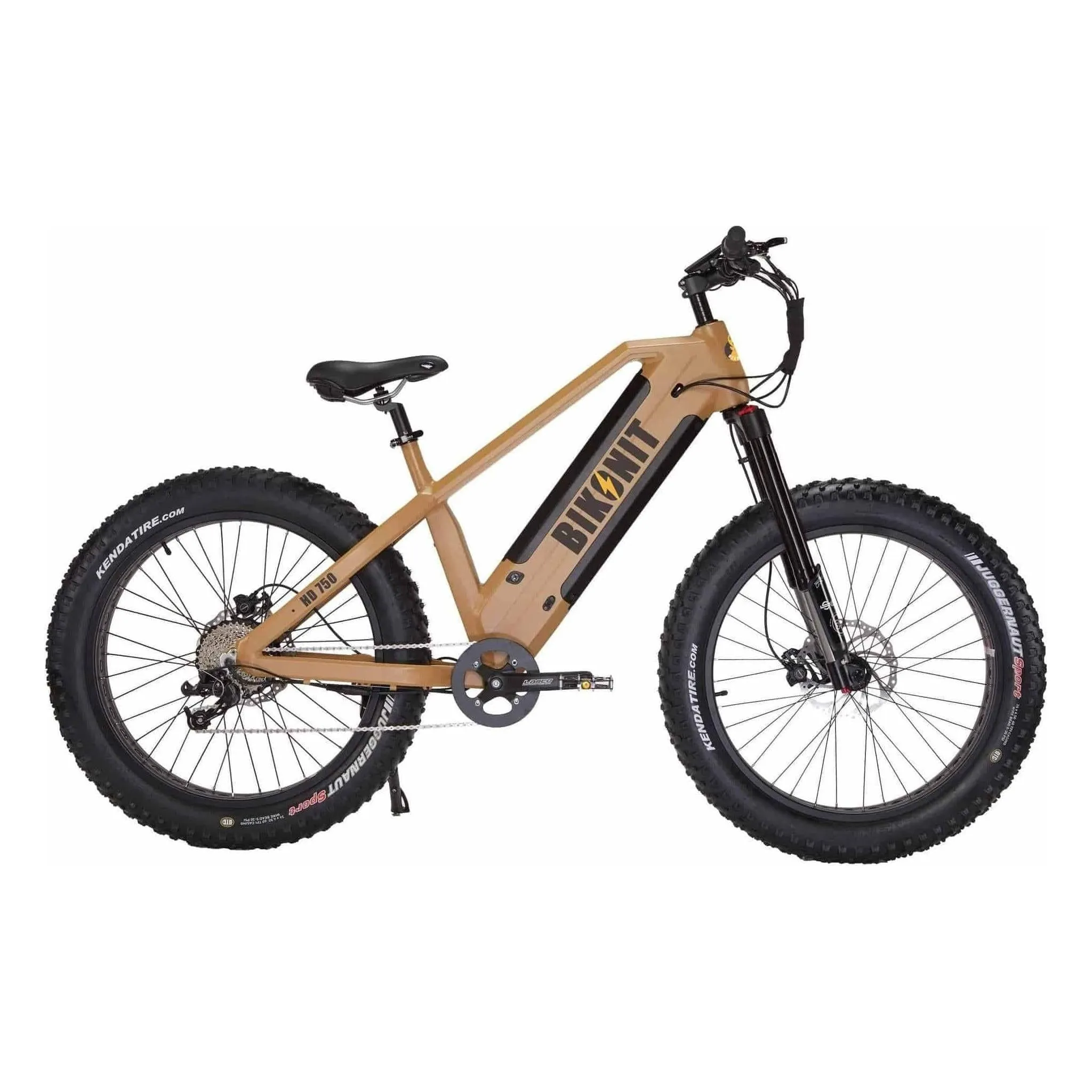

Bikonit MD-750 Highlights
- Bafang G510 750W Ultra Mid Motor
- 1500W Peak Output
- 160NM Torque, 500 lbs Towling
- Max Speed 20 MPH (32 KPH)
- Tektro HD-725 4 Piston Hydraulic Brakes

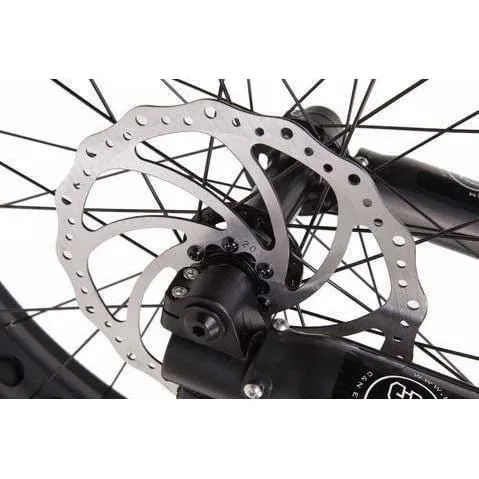

- 203 mm Disc Rotors
- Power Cutoff Function
- On Both Front & Rear Wheels

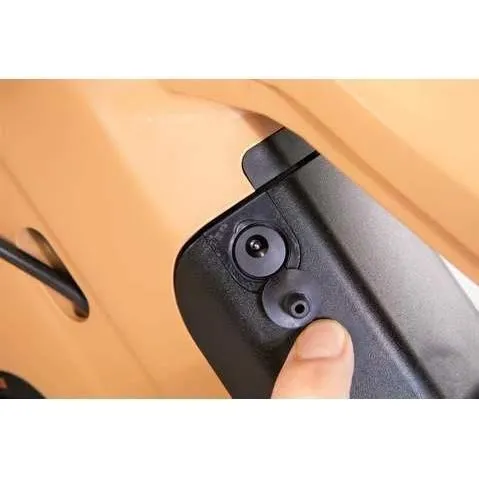

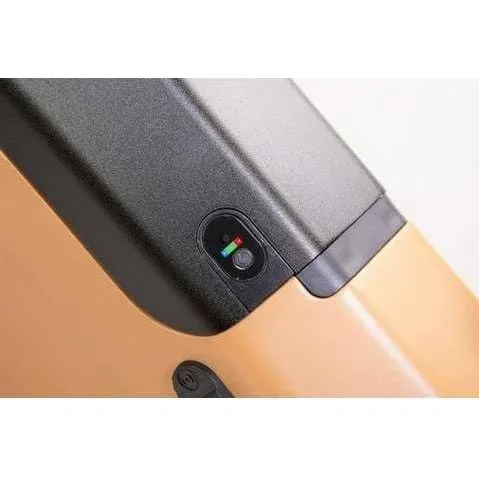

- Dual Battery Design Al Frame
- LG Chem 21700 Cells
- Capacity 48V 15 Ah (Single Battery)
- Max Capacity: 30 Ah (Dual Battery)
- Max rang reaches 100M (Dual Battery)
- KMC Professional Ebike Chain
- 3 Ride Modes:
- Pedal Like a Normal Bike
- Ride with Pedal Assist
- Ride with Thumb Throttle Like a Scooter

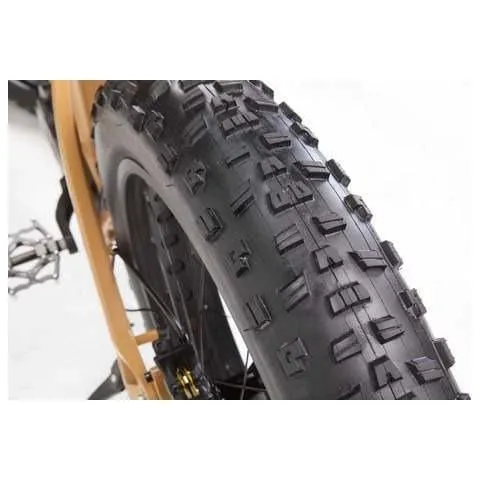

- Kenda Juggernaut 26*4.5''
- All-terrain
- Bafang Color LCD
- Backlight Function
- Auto-adjustable Brightness
- Intergraded USB Charging Port
- Sram X-5 9 speeds
- DNP 13T-34T with KMC Chain

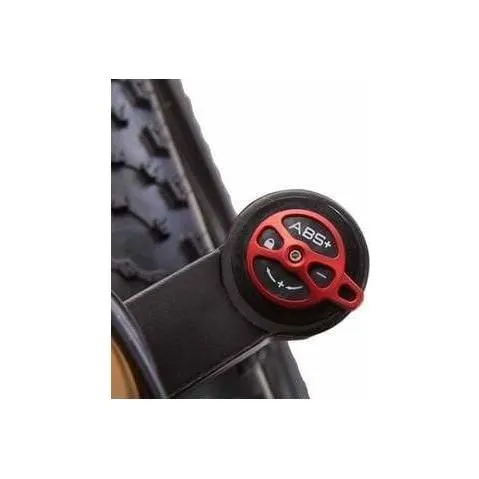

- Bikonit Customized Air Suspension
- 120 mm Travel
- Lock-out
Click here for -->>
Video
Specification
Bike Weight:
70 lbs (31.68kg) without battery
Battery Weight:
8.62lbs(3.91kg)/pc
Frame:
6061 Aluminum Alloy
Fork:
Bikonit Customized Air Suspension 120mm Travel,Lock-out

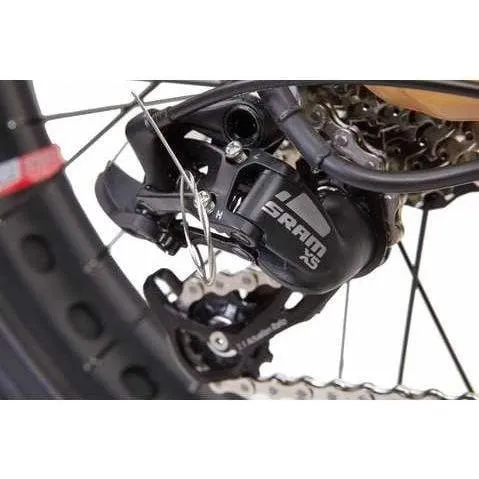

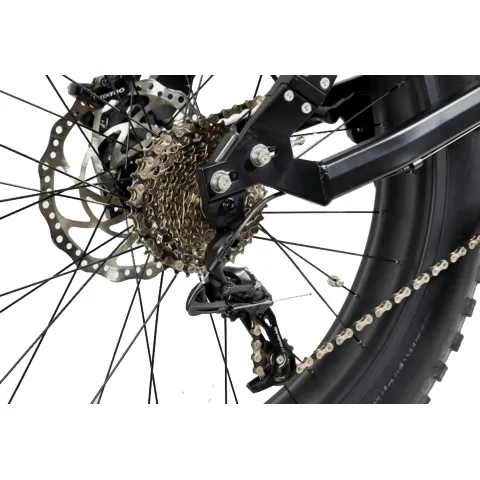

Rear Sprocket&Derailleur:
DNP 13T-34T/Sram X-5
Chain Sproket:
Bafang 44T with 170mm Crank
Chain:
KMC Ebike Profession
Front Hub:
15mm Quick Release, 150mm Hub Spacing
Gear Shifter:
Sram X-5 9 speeds Trigger shifter right hand
Rear Hub:
197mm Hub Spacing Bearing, Quick release.

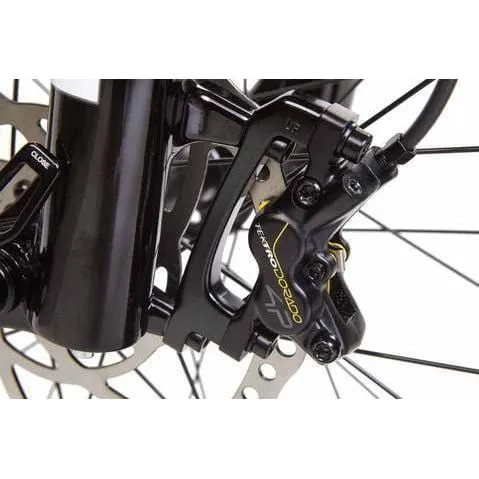

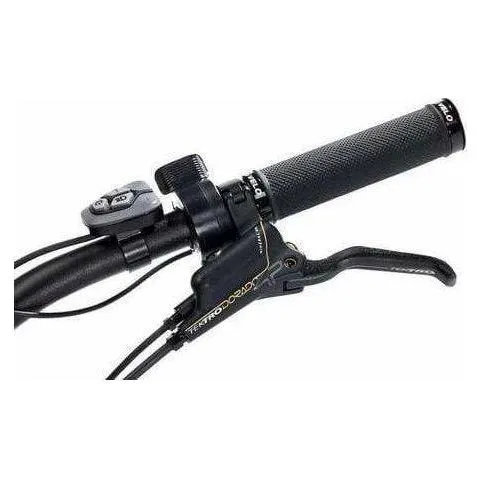

Brake System:
Tektro HD-E725 4 Piston Hydraulic 203mm Rotor. Power Cut off Function

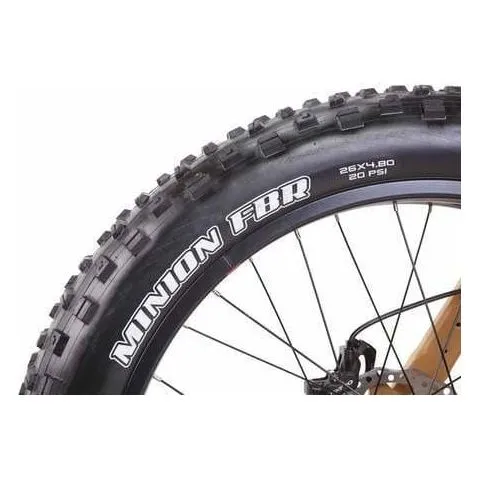

Tire:
Maxxis Minion FBF, 26" x 4.8" , All Terrain
Rim:
Aluminum Alloy, Double Wall, 100mm Width, 36 Hole

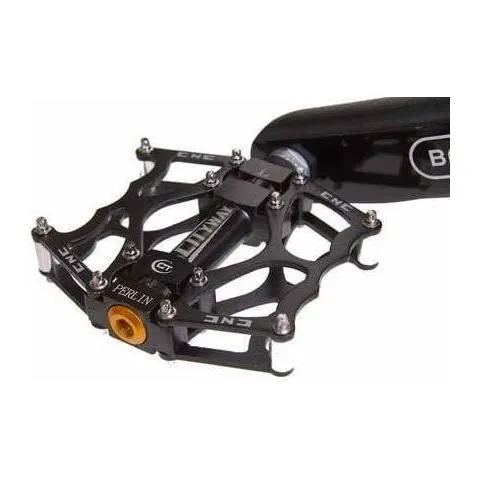

Pedal:
CITYWAY CNC

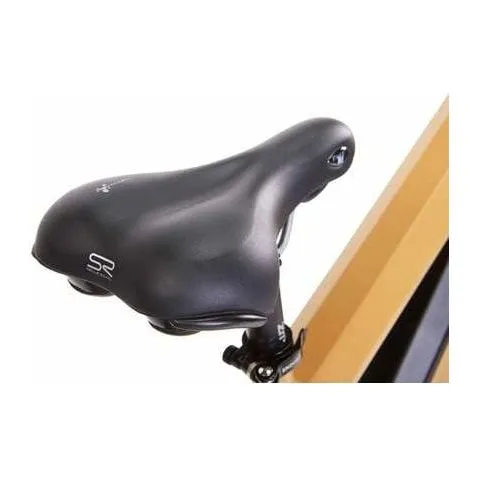

Saddle:
SR Saddle
Handle Bar:
Promax Aluminum Alloy, Promax 740mm Length, Low Rise
Stem:
Aluminum 31.8*60mm fixed

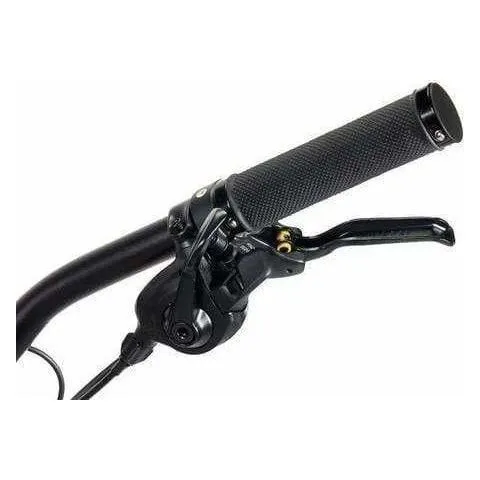

Grips:
Velo Grips Lock on
Standover Height:
29''
Weight Capacity:
300lbs
Charger:
48V 5A 110V~240V quick Charger

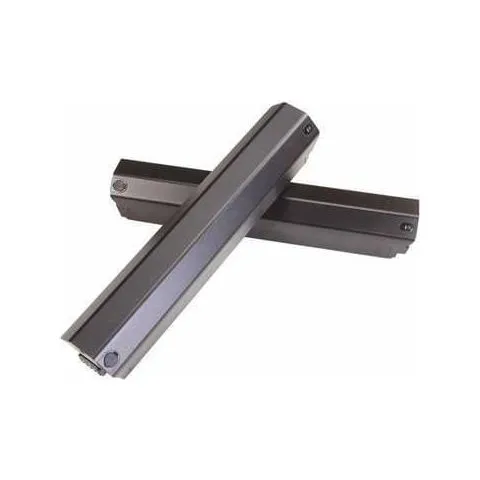

Battery:
LG 48V 15AH standard/(Max 30Ah dual battery version)
Controller:
Bangfang Ultra Intergraded

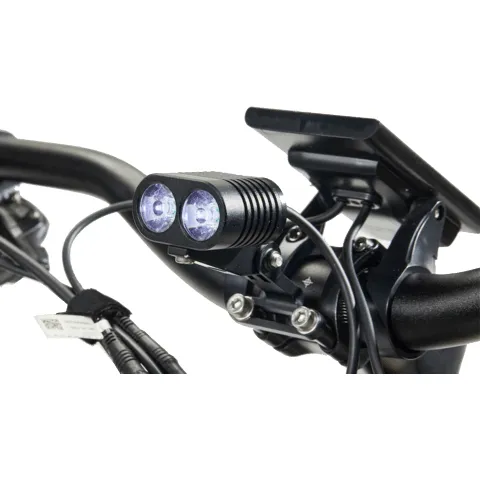

Display:
Bikonit color LCD, Backlight, Auto-adjustable Brightness, USD Port

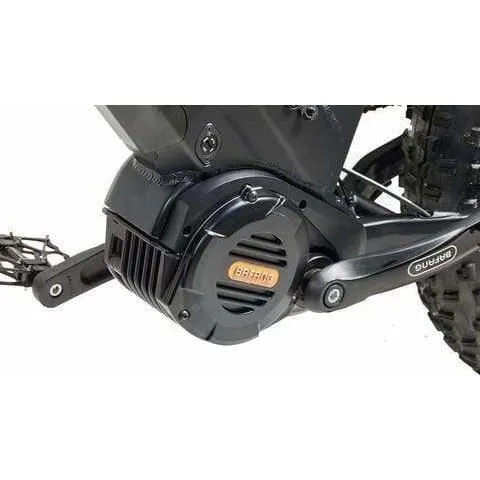

Motor:
Bafang G510 Ultra Max Mid Motor 750W
Ride Modes:
Pedal/Pedal Assit/Throttle.
Throttle Version:
Half Grip Twist Throttle on Right Hand
Range:
*28～35M (Pedal Assist)
* Range Depends on Terrain/Rider/Enviroment etc.
