Product Details ＋

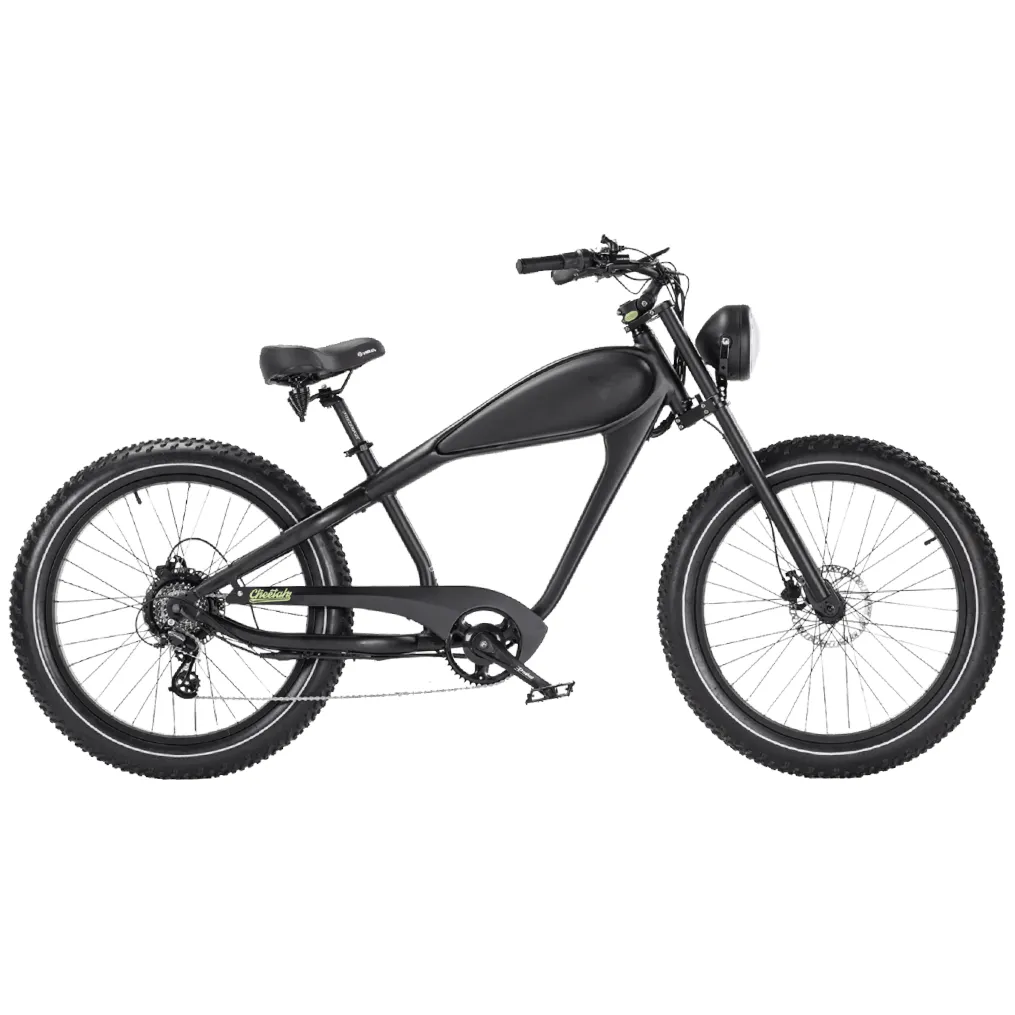

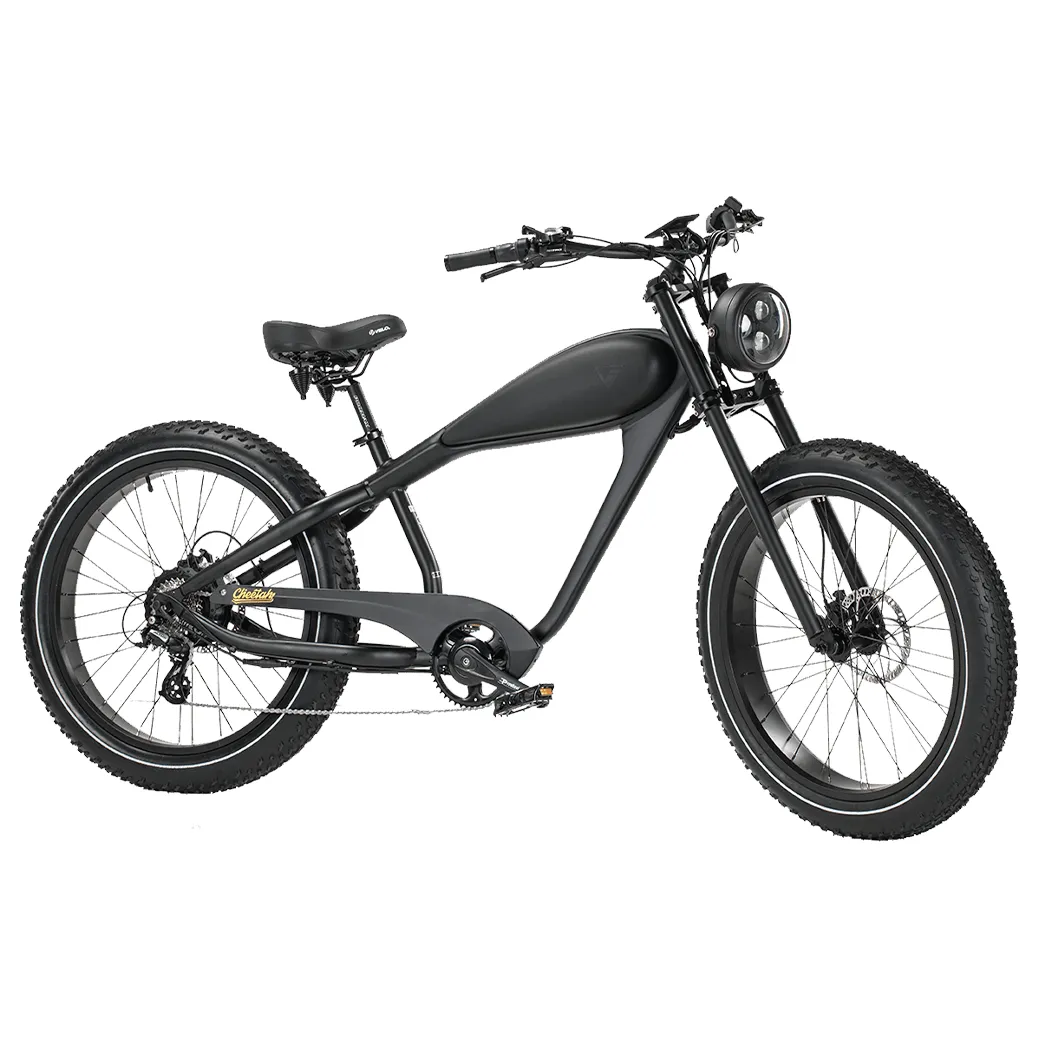

Cheetah Plus

An upgraded version of the Original ("OG") Cheetah. With 48V 17.5ah 840Wh, full black body with leather wrapped black cover, adjustable stem, KENDA anti-puncture tires with reflective strip.

Upgrade： All Black Frame with Black Tank Cover Wrapped in leather Heat stamp Revi logo
	Upgrade： Adjustable Stem More Upright Riding Posture
Upgrade： KENDA Anti-puncture Tire with Reflective Strip Boosted reliability and safety
	Brand New Head Light Design Brighter and Looks Cool
New Saddle Design - Wider, Thicker and Softer.
	USB Charging Port on Handle Bar
Upgrade： New LCD display firmware With smooth start feature. And now you can read error code on main screen.

Highlights

Classic looking. Design patent owned by Revibikes.
48V 750W BAFANG™ High speed gear motor. Peak output over 1,000W.
Bigger Size Full Color LCD display gives you all information you need: Odo, trip, speed, battery indicator. Drive mode selection. Daylight and Night model selection.
Improved headlight. Lower failure rate and brighter.
Front/Rear Tektro™ Hydraulic Brake stops Cheetah at any time if needed.
Half twist throttle. Twist throttle, Cheetah will take you anywhere.

What's Included

The Bike Itself	Front Light
Charger	Throttle
Pedals	User's Manual & Necessary Tools
Kickstand	REVIBIKES Stickers & Aluminum Badges

* You'll need to prepare an M5 Allen Key to finish the whole bike assembly

Key Information

	48V 750W		26" 4 Fat Tire
	17.5Ah		45 Miles
	300 LBS Max Payload		Suitable for Rider‘s Height: 5'4'' - 6'7''

Videos

Specification

Model: Cheetah Plus	Motor: 48V 750W Bafang™
Battery Type: Lithium-ion	Motor Peak Output: 1000W
Battery Cell: Samsung	Top Speed: 2-8
Battery Capacity: 48V 17.5Ah	Front Light: Included.
Range: 45 Miles	High/Low Beam Switch: Yes
Charging Time: 4 - 6 Hrs	Pedal Assist: 5-9 levels
Tire: Kenda Tire	Throttle: Yes
Reflect Strip: Yes	Wheel Size: 26'' 4.0 Fat Tire
Display: Full Color	Brake: F/R Hydraulic Brake
Display Function:	Brake Brand: Tektro
PAS Level, Current Speed, Max Speed, Odometer, Trip, Daylight and Night Model Selection, Eco, Normal, Power drive model selection	Weight: 70 lbs with battery
Frame Material: 6061 Aluminum Alloy	Shift: 7 Speed SHIMANO™
Saddle: Leather with Mechanical Spring	Crank Wheel: 42T
Chain: KMC™ Anti-Rust	Motor Efficiency: ≥80%
