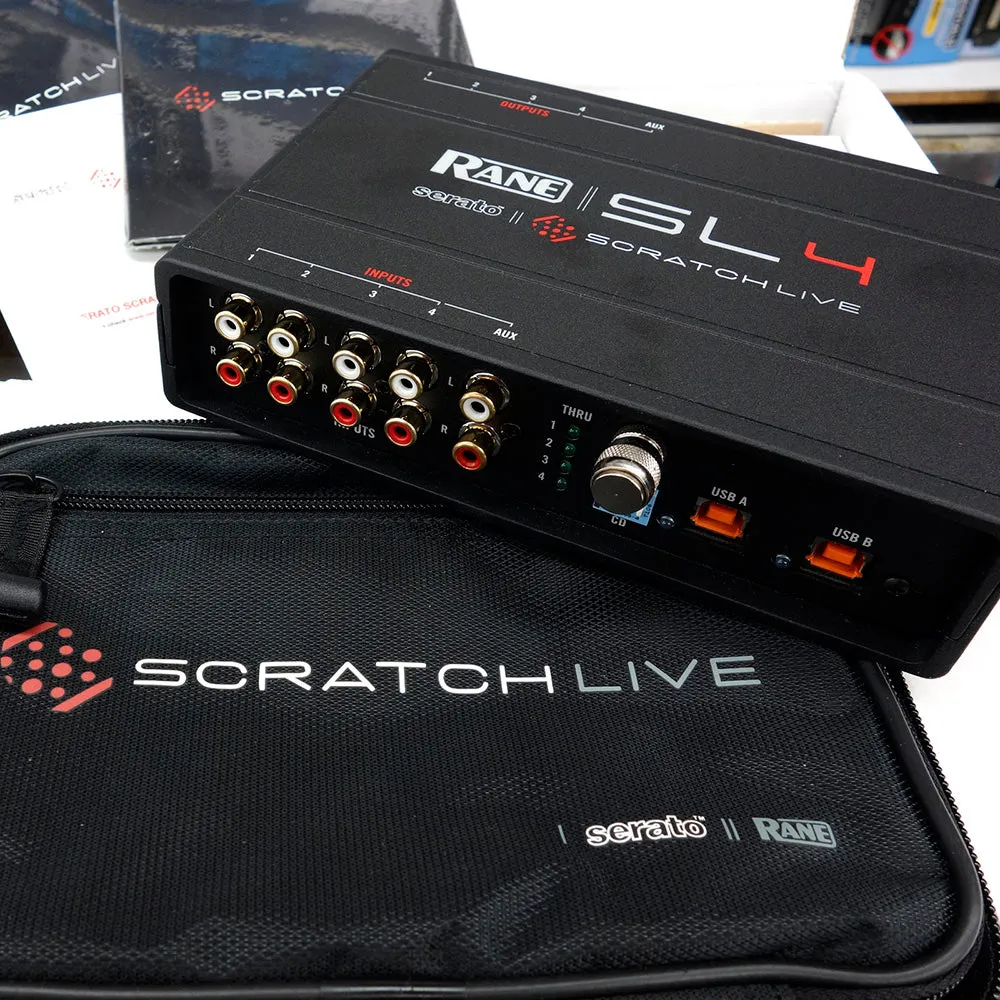

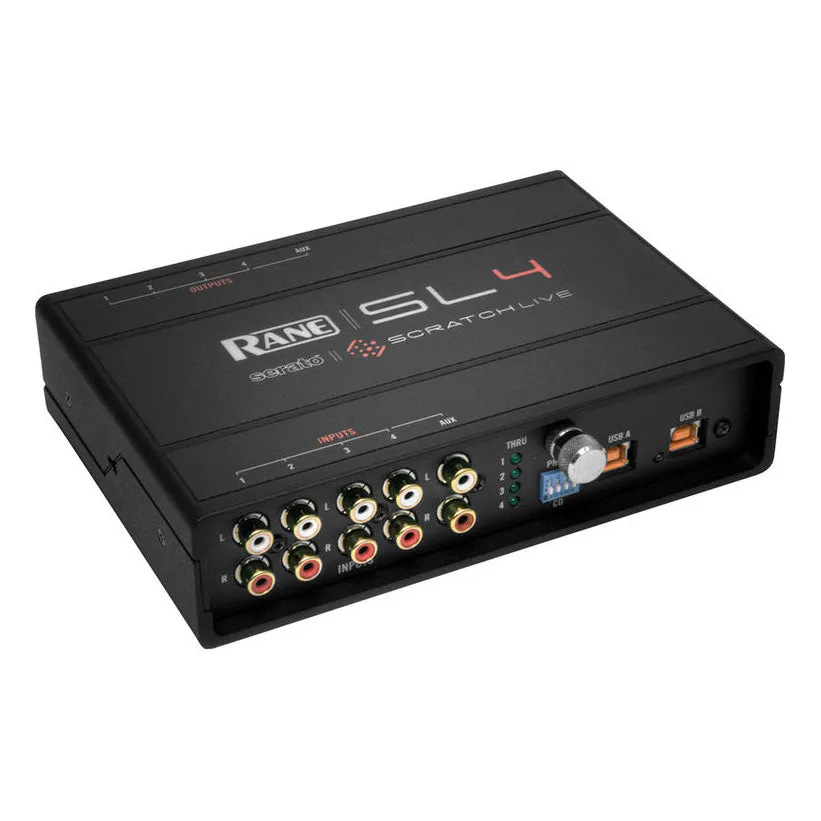

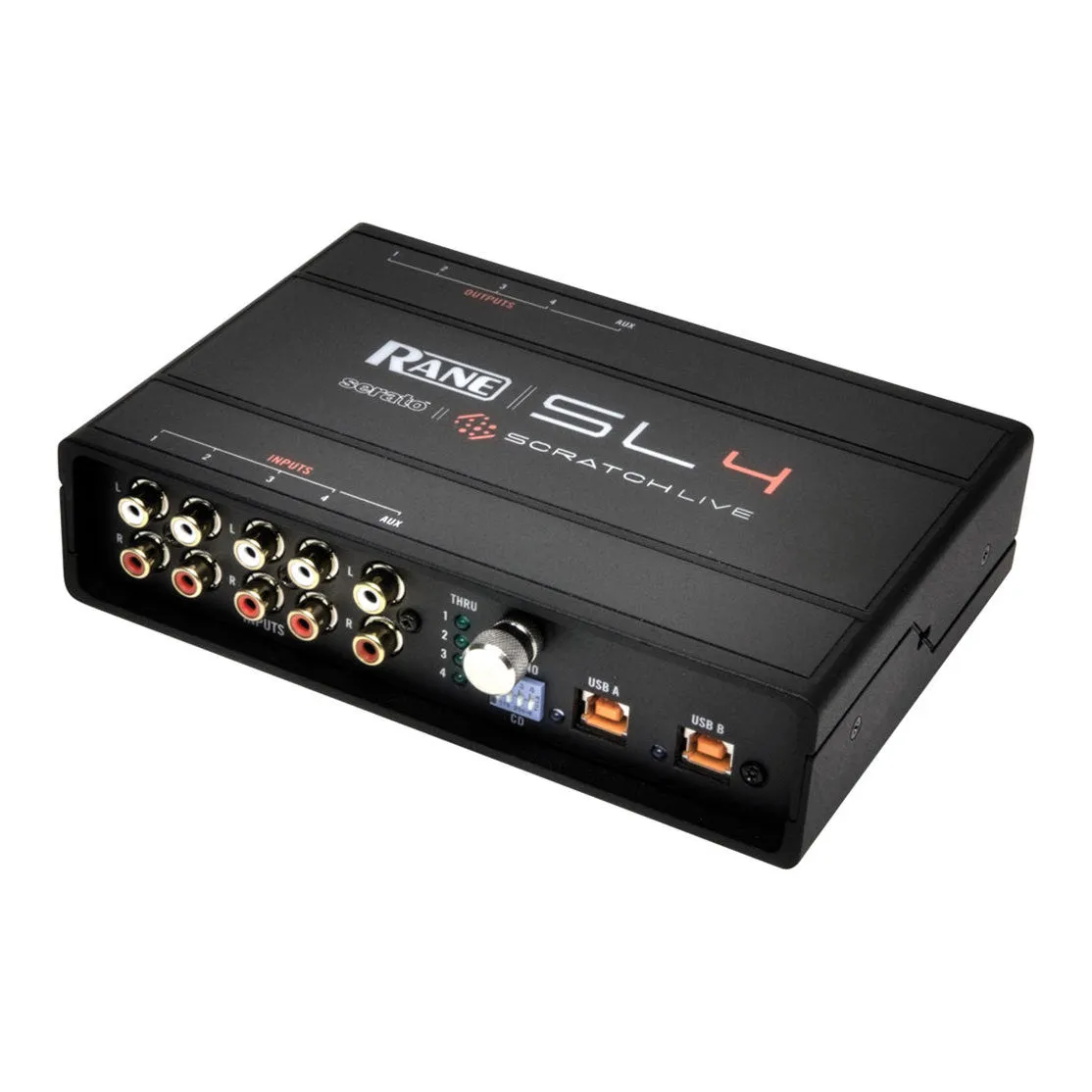

RANE DJ SL 4 Overview
The Rane SL 4 is the 5-channel DJ audio interface with Serato Scratch Live software included. The system also includes 4x control CDs, 4x control vinyl records and all necessary cabling. The improved interface boasts support for 4x turntables or CD decks, 24-Bit / 96kHz resolution, an auxiliary I/O, and 2x USB 2.0 ports for seamless changeover in between DJ sets.
Low latency ASIO and Core Audio drivers deliver accurate control and audio playback response. The rugged enclosure features galvanic isolation to eliminate computer noise and interference. The SL 4 is guaranteed to deliver the flexibility, sound and features to meet the demands of professional Serato DJs, and nightclub DJ booths the world over.

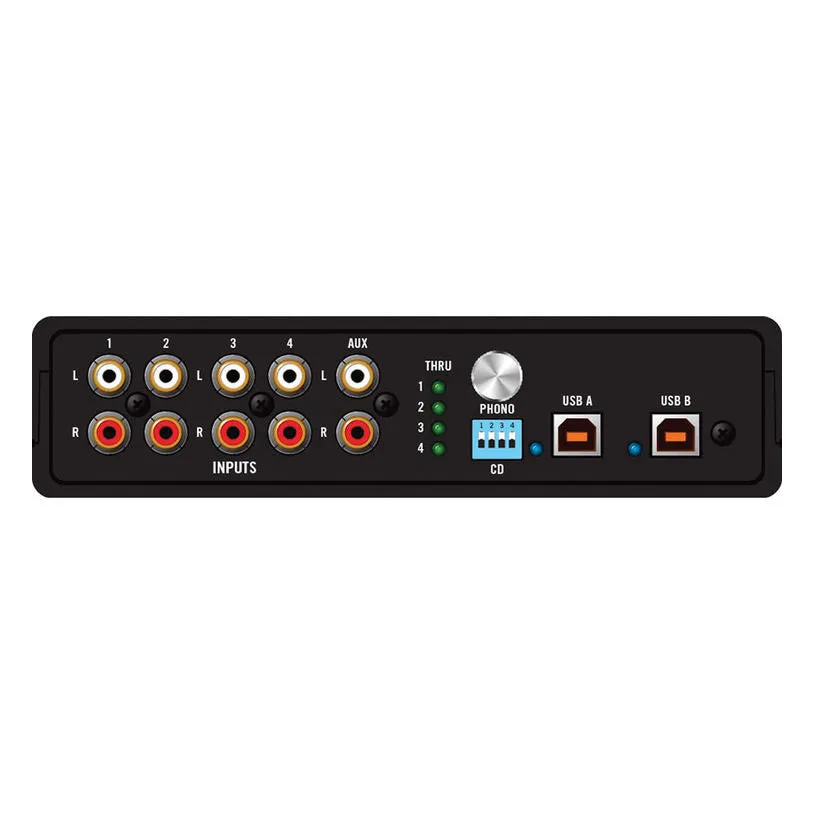

- Inputs for four turntables or CD decks switchable in any combination.
- Two high-speed USB 2.0 ports for seamless DJ changeover and back-to-back performance.
- Aux Input for session recording or LiveFeed.
- Aux Output assignable to the SP-6 Sample Player and The Bridge.

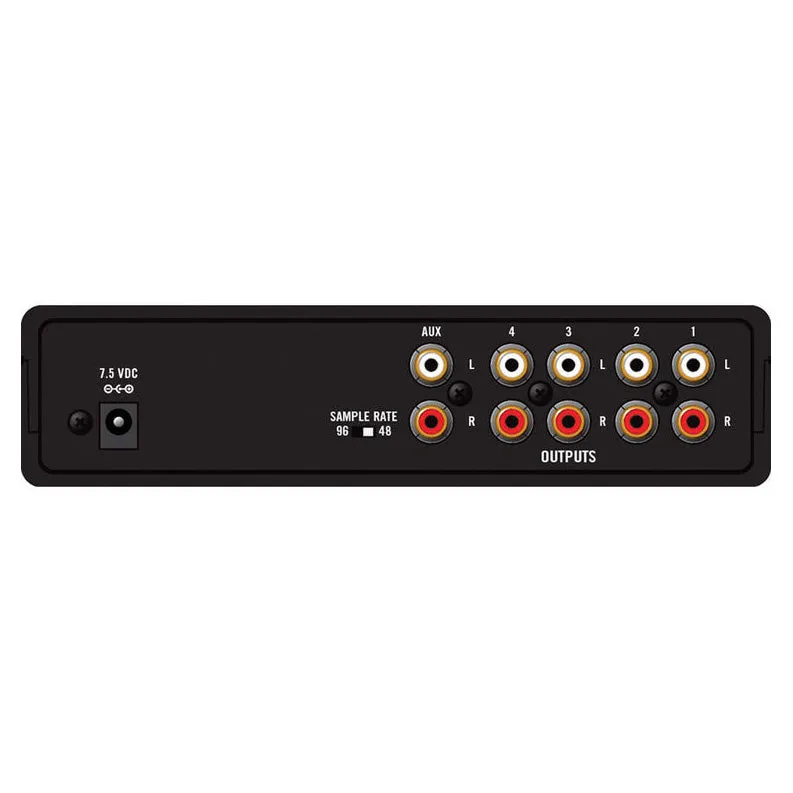

- 48 kHz and 96 kHz sample rate switch on the SL 4 rear.
- 10-in 10-out USB sound card with any software supporting ASIO or Core Audio.
- Built in galvanic isolation for the purest audio signal.
- Four software-switchable analog Thru connections for regular vinyl or CD.
- Bus power from either USB port or the included external power supply.
RANE DJ SL 4 Specs
| Interface | |
|---|---|
| USB | USB 2.0 Ports x2 USB Power Requirement: 500 mA, 5.0 Volts USB Audio Channels: Ten Record and Ten Playback |
| Power | External Power Supply 7.5 Volts (included) |
| Converters | 24-bit / 48 kHz or 96 kHz (rear panel switch) DAC Dynamic Range: 104.5 dB, A-weighted ADC Dynamic Range: 103 dB, A-weighted |
| Dynamic Range | 101 dB A-weighted analog in to analog out |
| THD & Noise | THD N 0.007% at 1 kHz, 20 Hz to 20 kHz BW |
| Frequency Response | -0.6dB @ 20Hz, -0.03dB @ 20kHz |
| Inputs | Aux: Line Level Gain: Unity Maximum I/O: 3Vrms @ 1kHz Switched Phono Input Maximum: 70mV rms @ 1kHz |
| Dimensions | 7.25 x 5 x 1.7" (18.4 x 12.6 x 4.3cm) |
| Weight | 6 lbs (3kg) |
| System Requirements |
PLEASE NOTE: These are the minimum requirements to run Scratch Live with the SL 4. For best performance and for use in professional situations, a higher spec computer is recommended. Intel processors are recommended. Available USB 2.0 port 1024 x 768 screen resolution or higher Hard drive space for music: 5400RPM minimum, 7200RPM recommended for high resolution audio playback Mac 2GHz Intel Core Duo 2GB RAM OSX 10.5.8 or higher Windows 2.2GHz Intel Core Duo 2GB RAM. Windows XP with Service Pack 3 or Windows Vista with Service Pack 2 or Windows 7. Rane recommends Windows 7 over Vista |
| Packaging Info | |
|---|---|
| Package Weight | 7.65 lb |
| Box Dimensions (LxWxH) | 14.2 x 14.0 x 4.1" |
