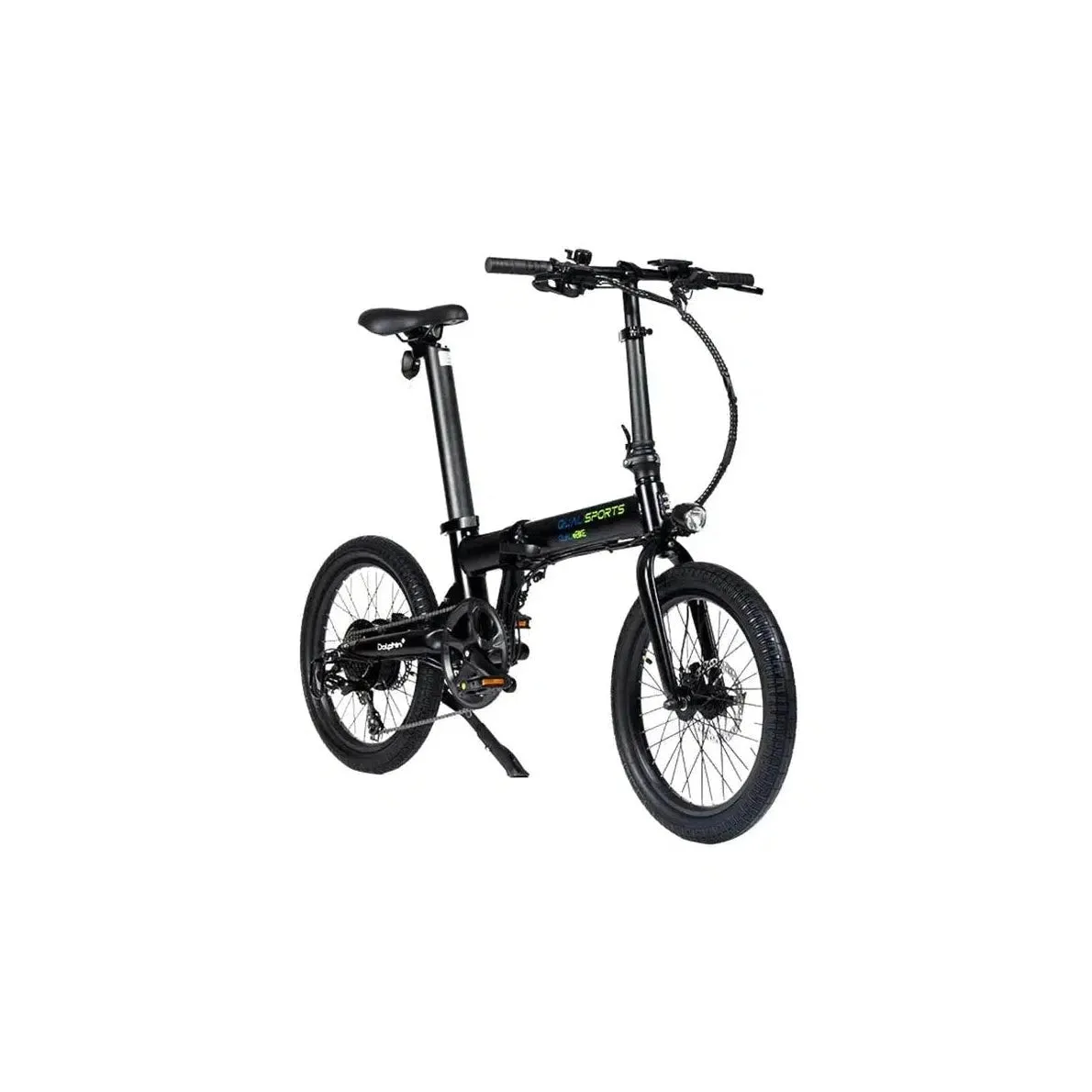

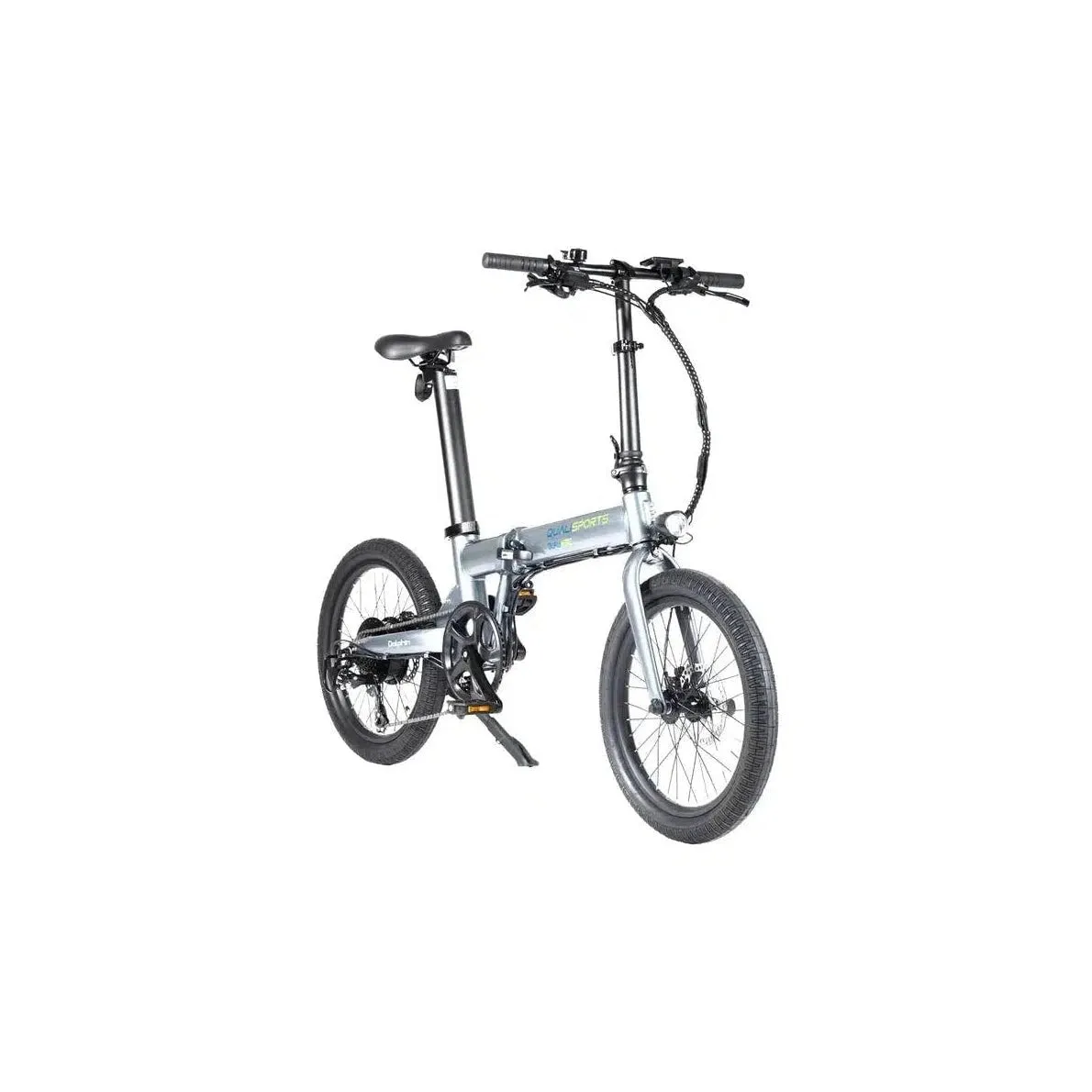

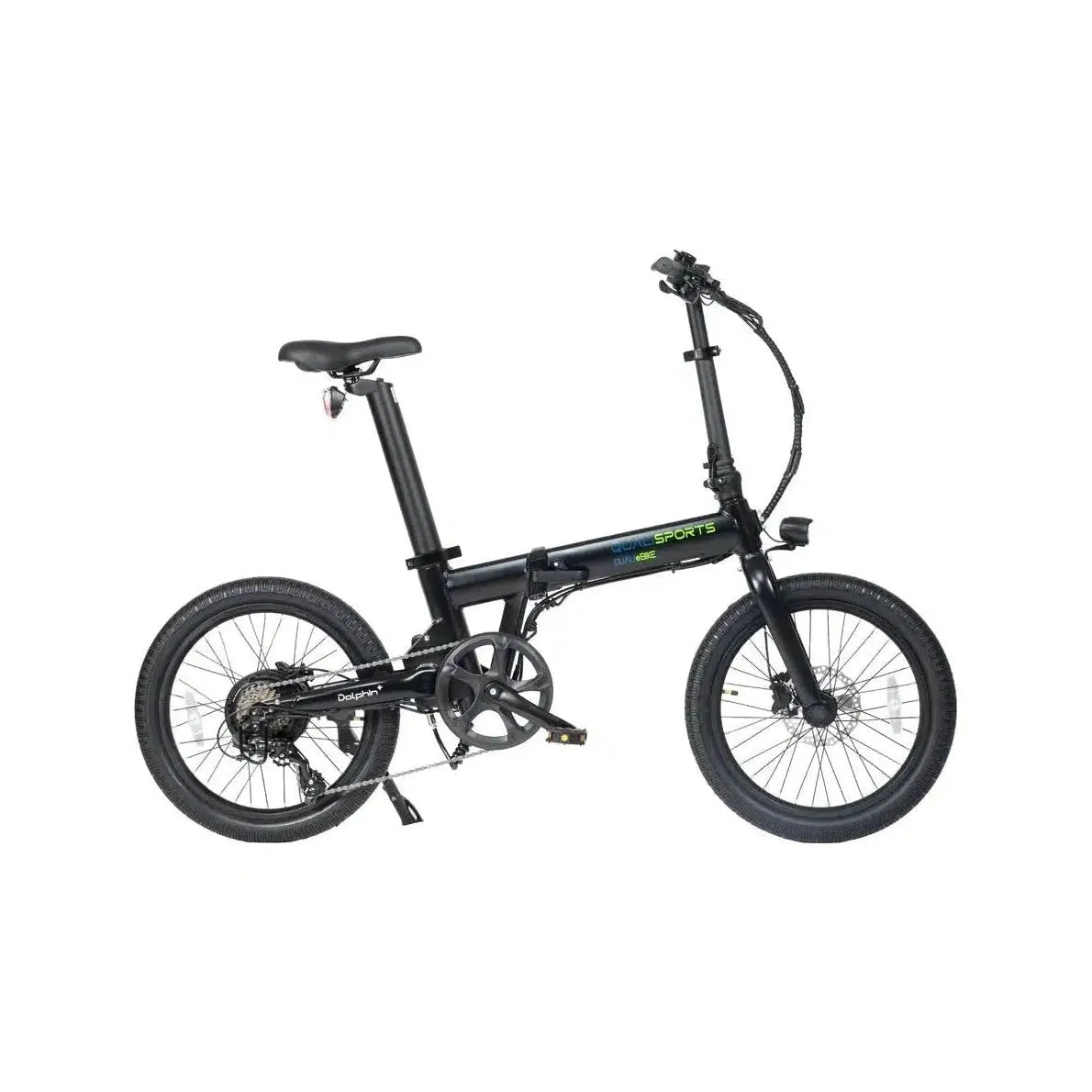

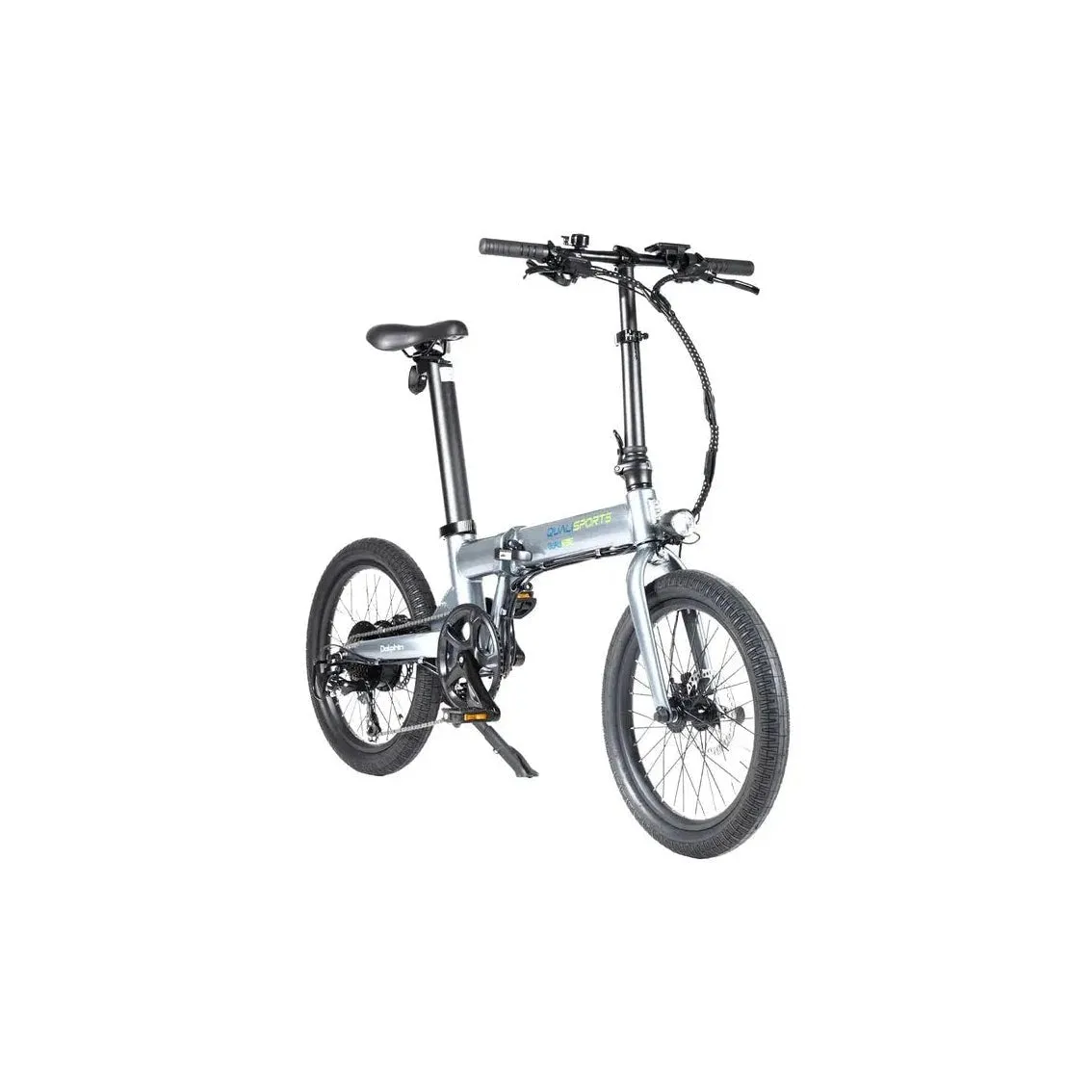

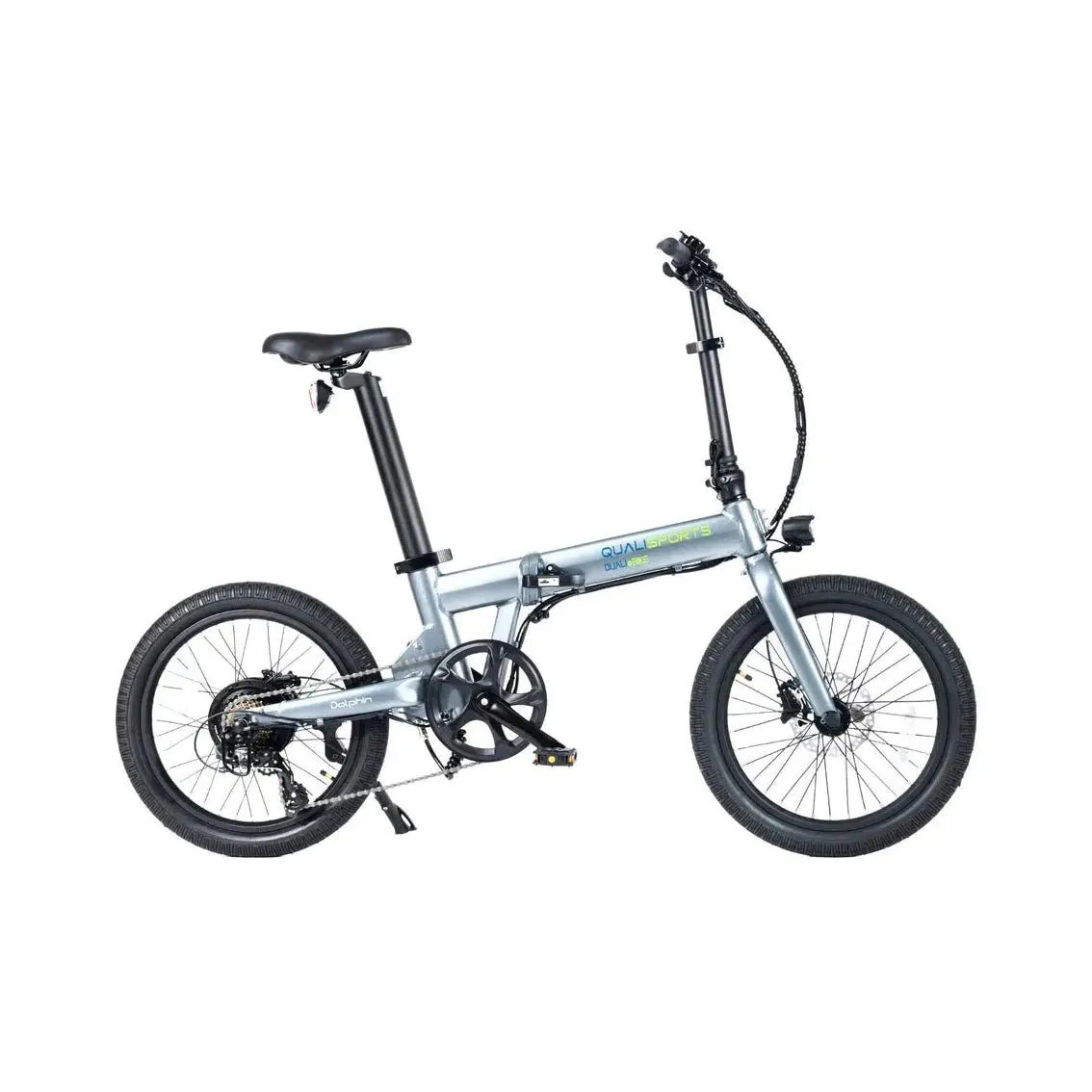

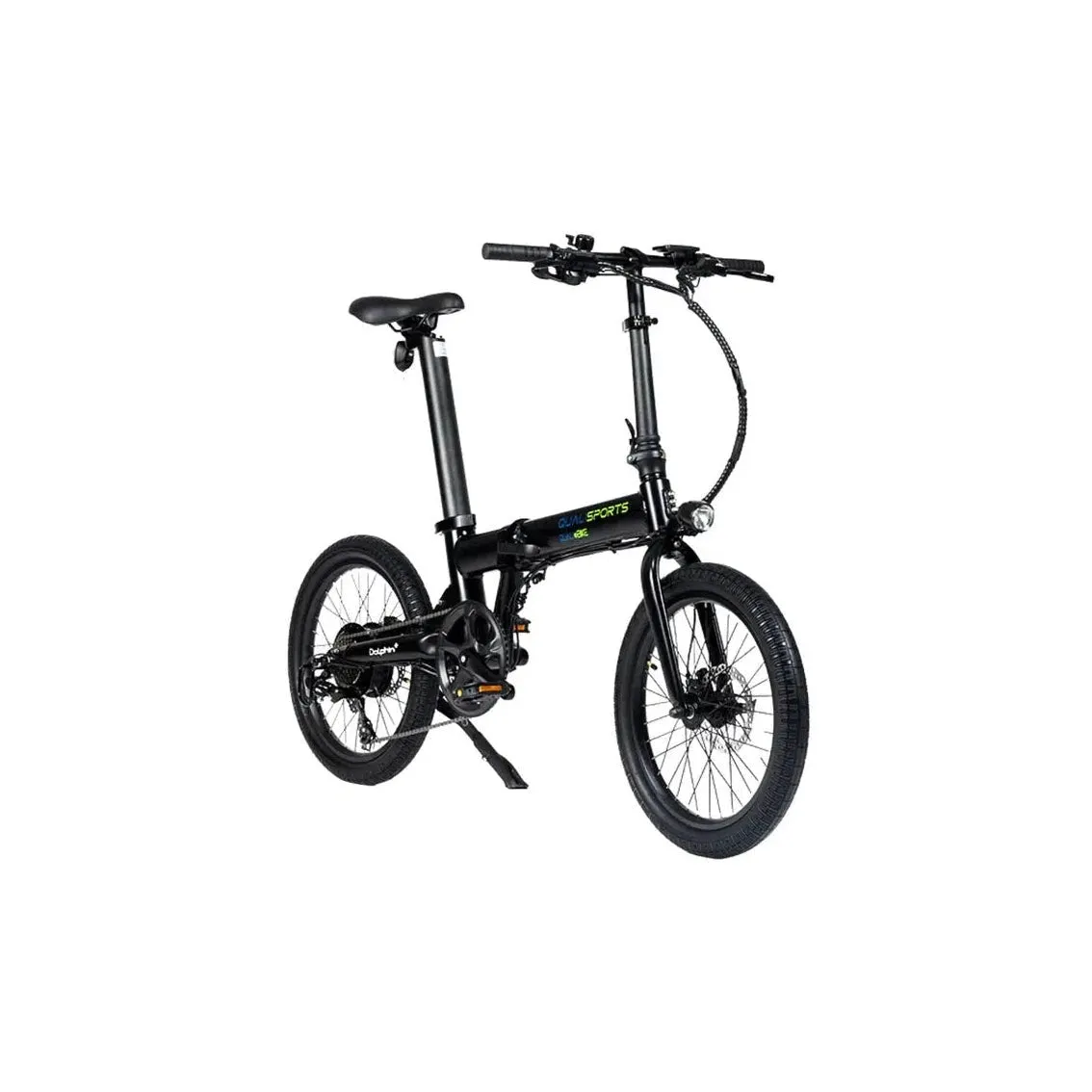

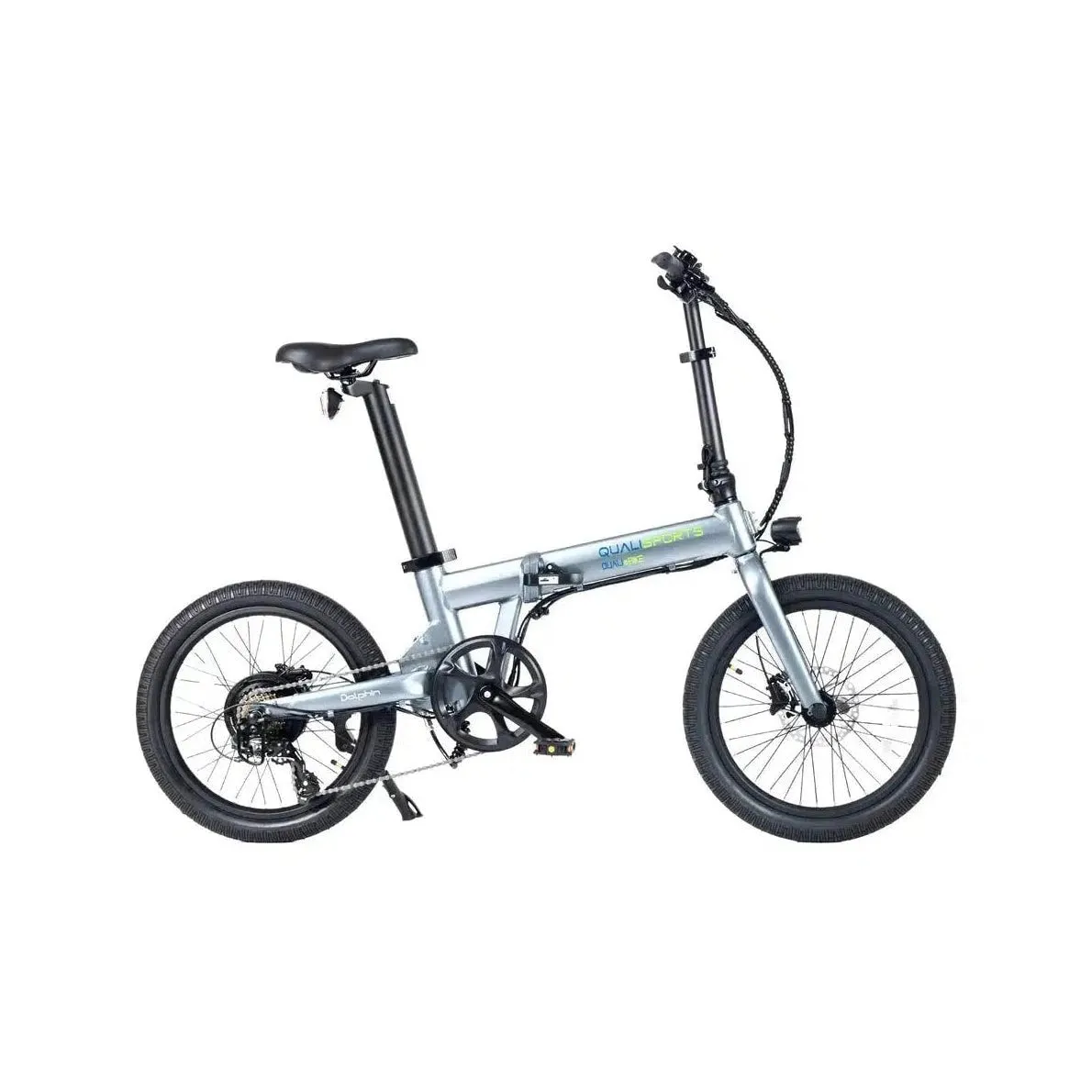

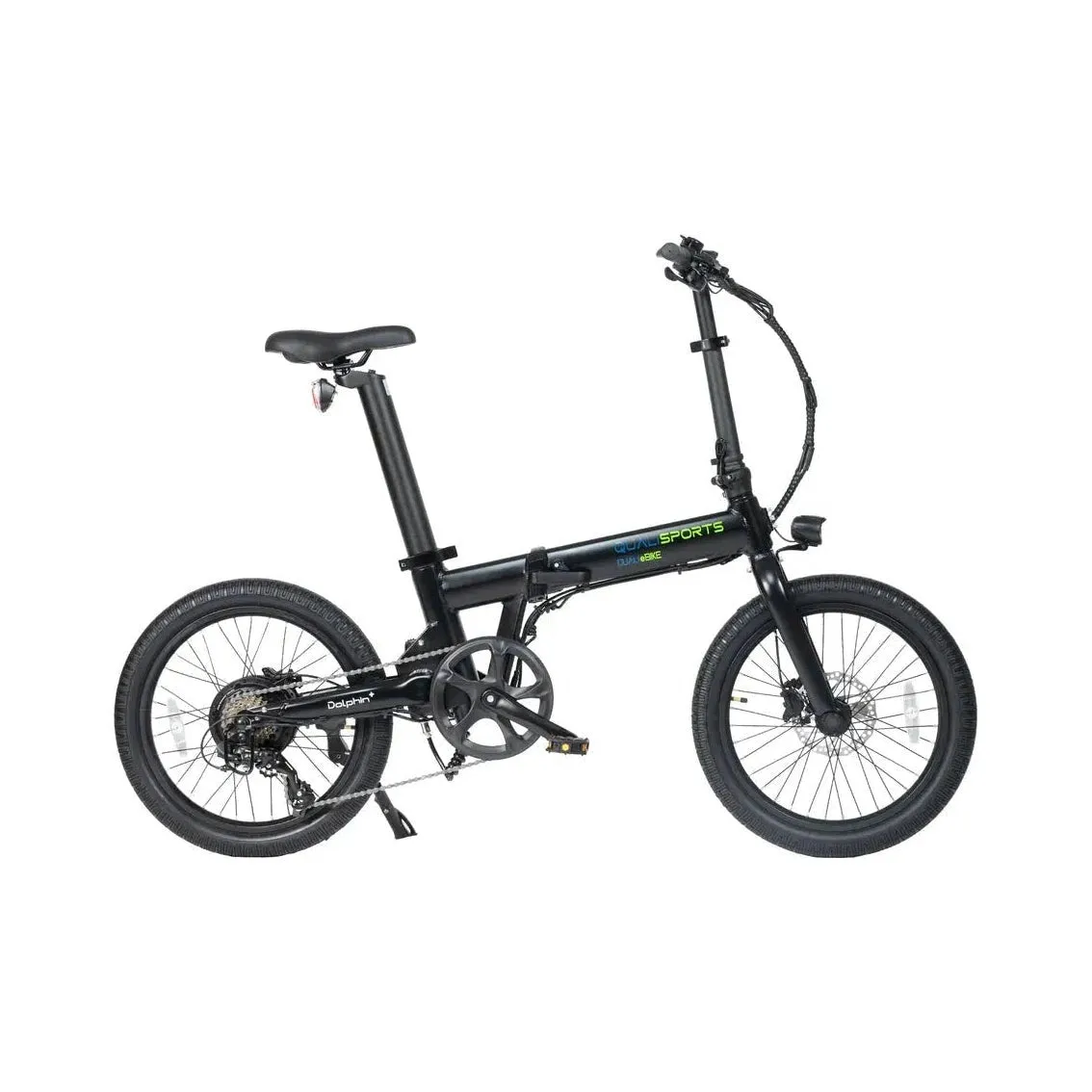

Qualisports | DOLPHIN 48V 10.5Ah 500W Folding Electric Bike
UPGRADABLE BATTERY SYSTEM
One 48V 10.5AH lithium-ion battery, one 7AH optional lithium battery, charging time of 4-6 hours, and a range of roughly 80 miles.
The new Dolphin and Dolphin Plus have the same frame design, allowing it to be upgraded to a dual-battery version by purchasing a dual-battery kit.
CUSTOMIZED QUALISPORTS MOTOR
Climb hills and traverse crossroads smoothly and efficiently, powered by our custom 500W motor from Qualisports USA, which is designed in-house to help you go steeper at a lower speed.
QUALITY HYDRAULIC BRAKES
With fluid in the master cylinder, hydraulic brakes have a much more efficient braking mechanism to force the brake pads together when the lever is pushed.
Multiplying the amount of effort put into the lever makes it easier to brake.
MULTIFUNCTIONAL LCD DISPLAY
The LCD display lets you easily see some parameters like battery capacity, current speed, pedal assist level, and travel distance.
It has a USB for your phone charging.
Tech Specs
Electronics
Battery Type
Samsung Lithium-ion Battery
Battery Capacity
Seat post battery 48V 10.5Ah; Tube battery: 48V 7AH
Charging Time
3-4Hrs/Dolphin;
4-4.5Hrs/Dolphin Plus
Motor Brand
Qualisports USA Custom Manufactured 500W
Motor Torque
80 Newton meters
Max. Speed
20 mph
Display Brand
KT-7 LCD Display with USB Chraing Port
Drive Mode
Cadence Sensing Pedal Assist/Trigger Throttle (12 Magnet Sealed Sensor)-Normal Biking-Cruise-Walk Assist
Battery Type
Samsung Lithium-ion Battery
Battery Capacity
Seat post battery 48V 10.5Ah; Tube battery: 48V 7AH
Charging Time
3-4Hrs/Dolphin;
4-4.5Hrs/Dolphin Plus
Motor Brand
Qualisports USA Custom Manufactured 500W
Motor Torque
80 Newton meters
Max. Speed
20 mph
Display Brand
KT-7 LCD Display with USB Chraing Port
Drive Mode
Cadence Sensing Pedal Assist/Trigger Throttle (12 Magnet Sealed Sensor)-Normal Biking-Cruise-Walk Assist
Components
Size
63.50'' x 25.00'' x 44.09''

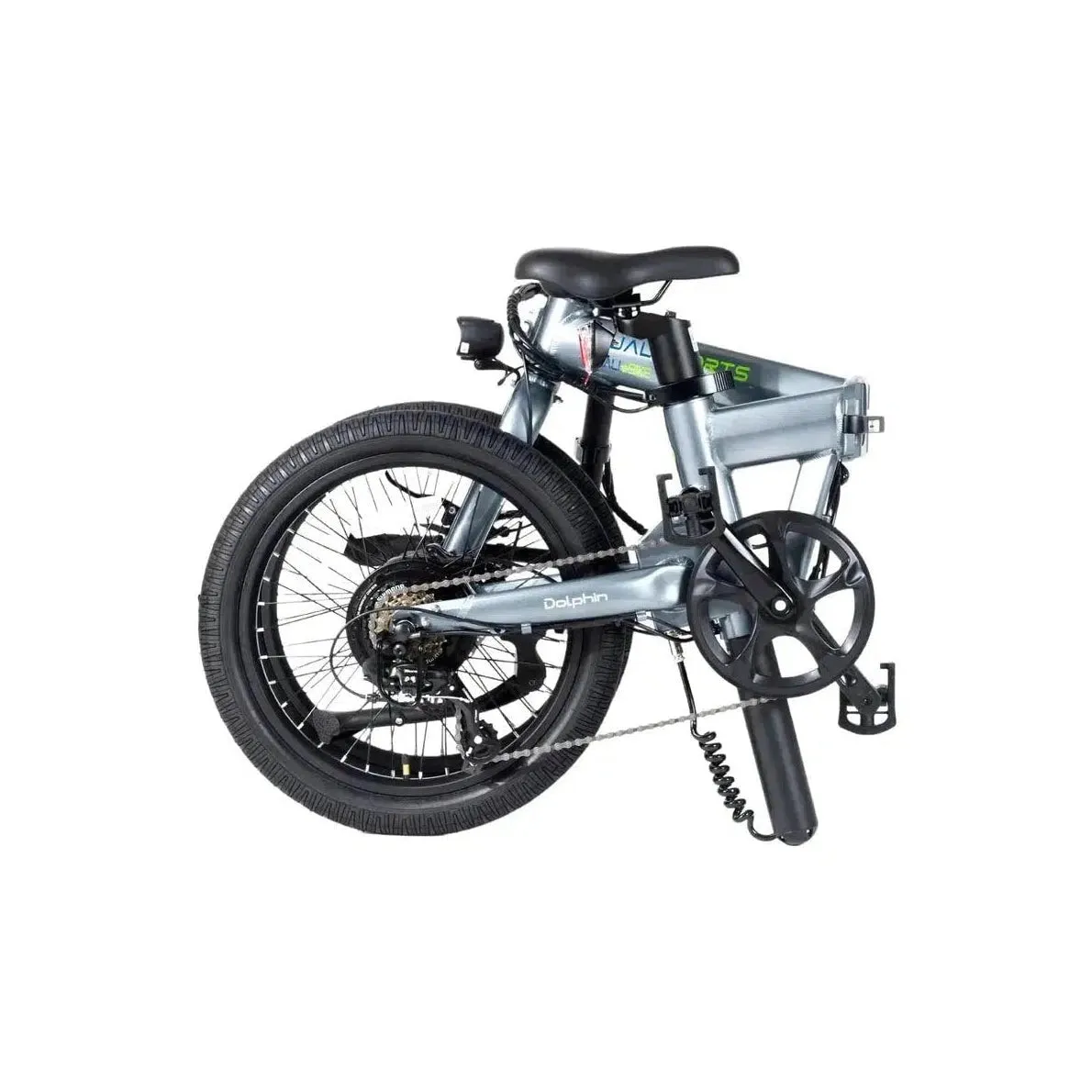

Folded Size
33" x 14.5" x 28.5"
Net Weight
51 lbs
Max. Load
300 lbs
Frame Type
Mid-Step, Folding
Saddle
KNUS, Active
Seat Post
Custom, 57mm, Alloy (Contains the Battery)
Brake Details
Custom 2 piston Hydraulic Brakes with power coutoff
Gearing Details
7 Speed 1x7 Shimano Tourney Derailleur, MF-TZ500-7 14-28 Tooth Cassette
Cranks
Prowheel Forged Alloy, 170mm Length, 52 Tooth Chainring with Plastic Guard
Tire Brand
INNOVA, 20" x 2.30"
Manuals & Assembly
DOLPHIN-48V/10.5AhDOLPHIN-36V/14Ah
What's in the Box
Front and rear fender X 1
Kickstand X 1
Battery and charger X 1
Thumb throttle X 1
Front and rear light X 1
Tool bag X 1
Size & Fit

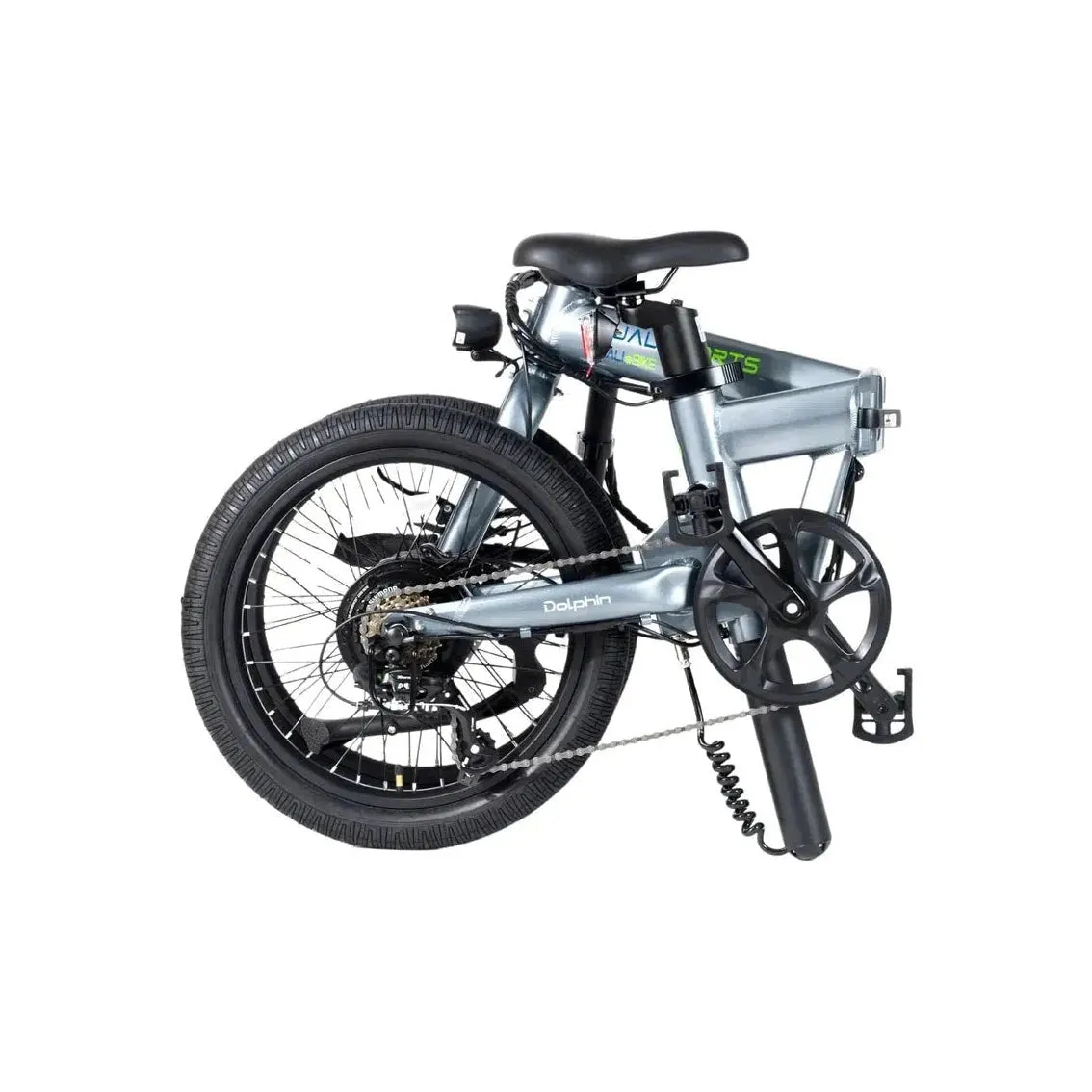

Folded Size: 33*14.5*28.5 in
1.Max Handlebar Height：39.76 in
2.Min Handlebar Height：32.48 in
3.Standover Height：21.50 in
4.Max Saddle Height：39.76 in
5.Min Saddle Height：32.00 in
6.Wheelbase：42.25 in
7.Reach ：22.50 in
8.Width：25.00 in
