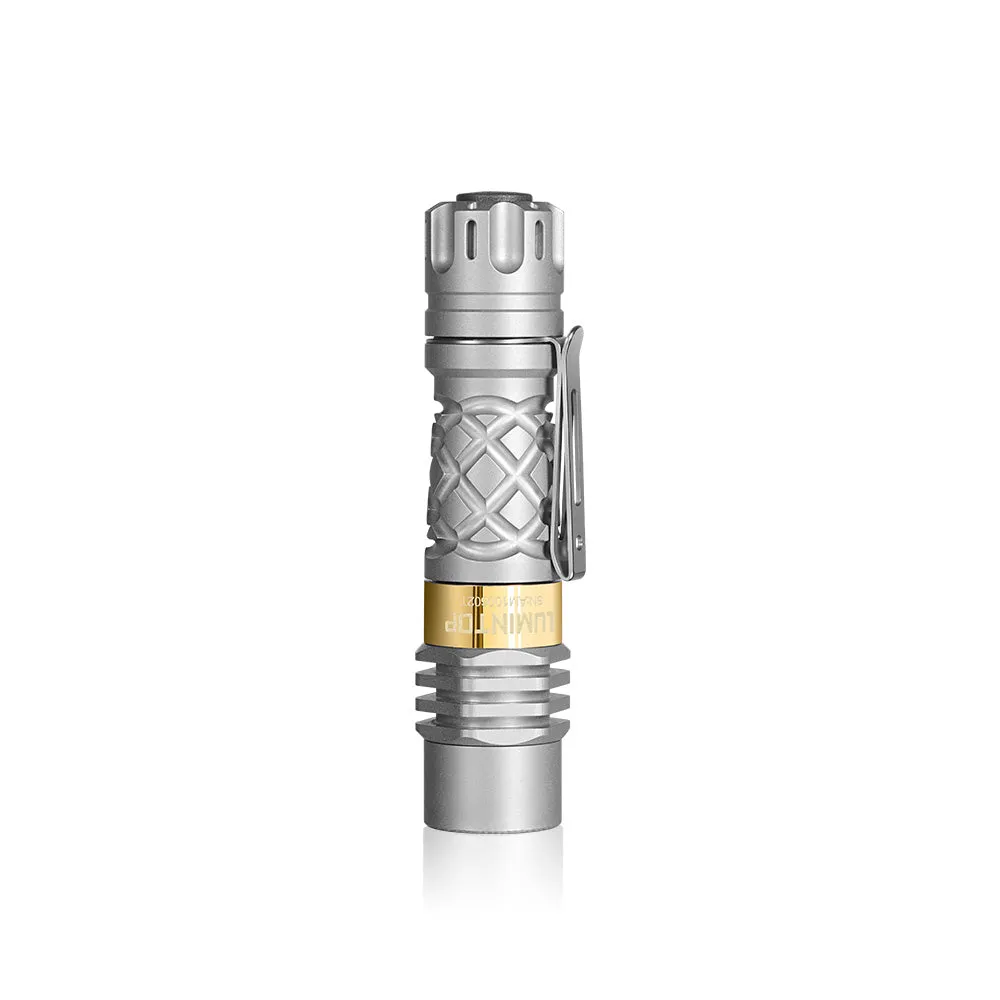

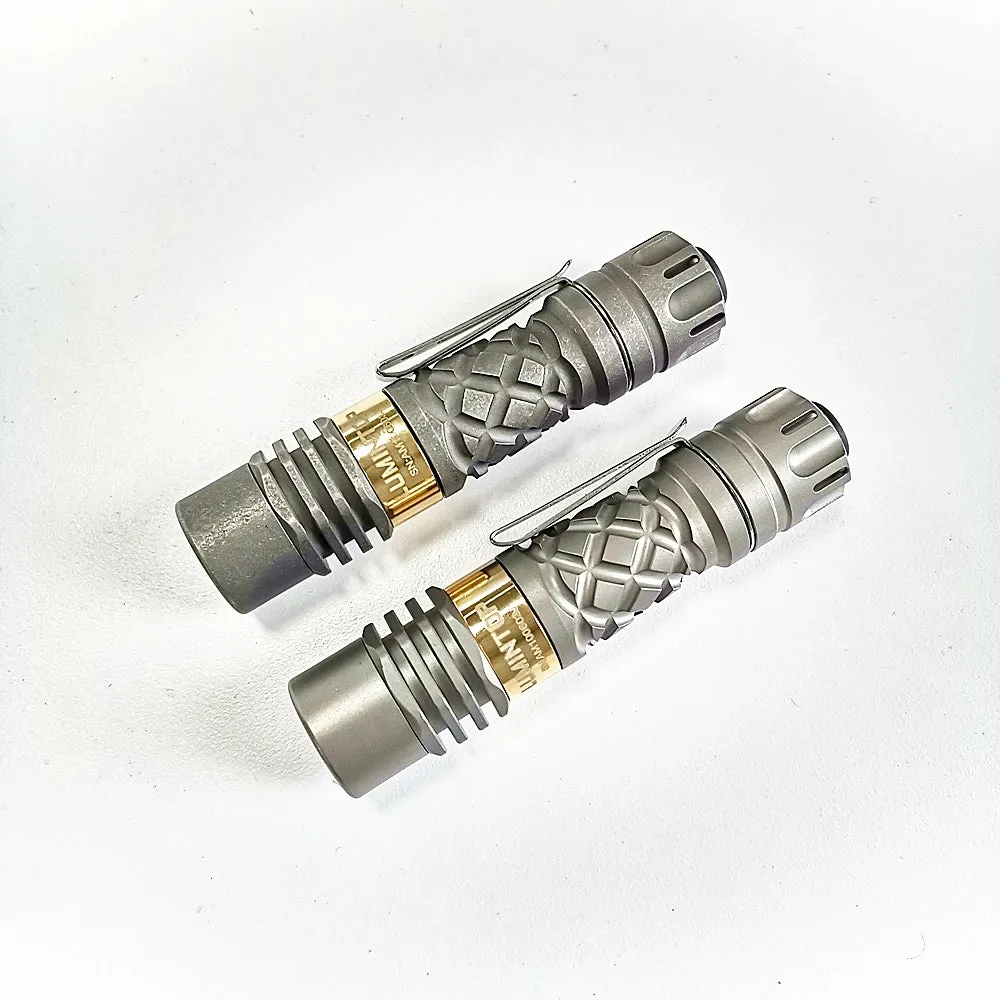

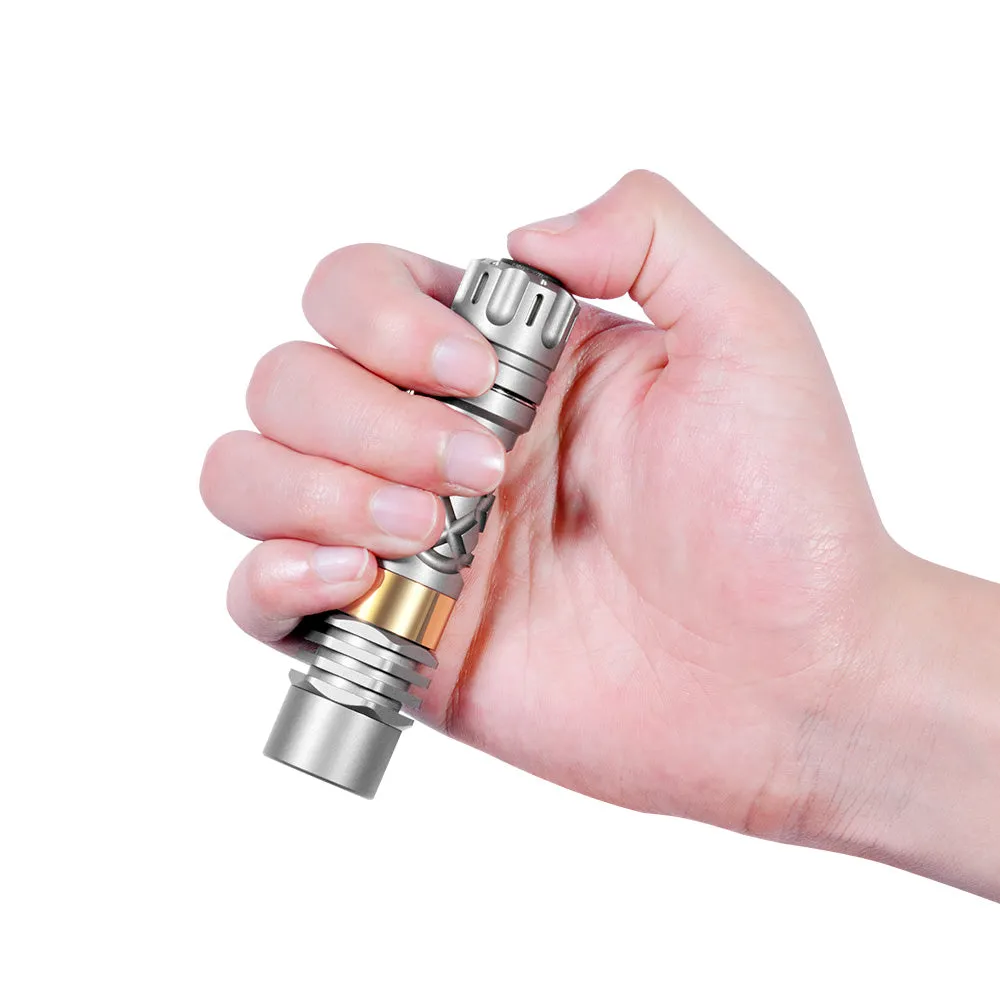

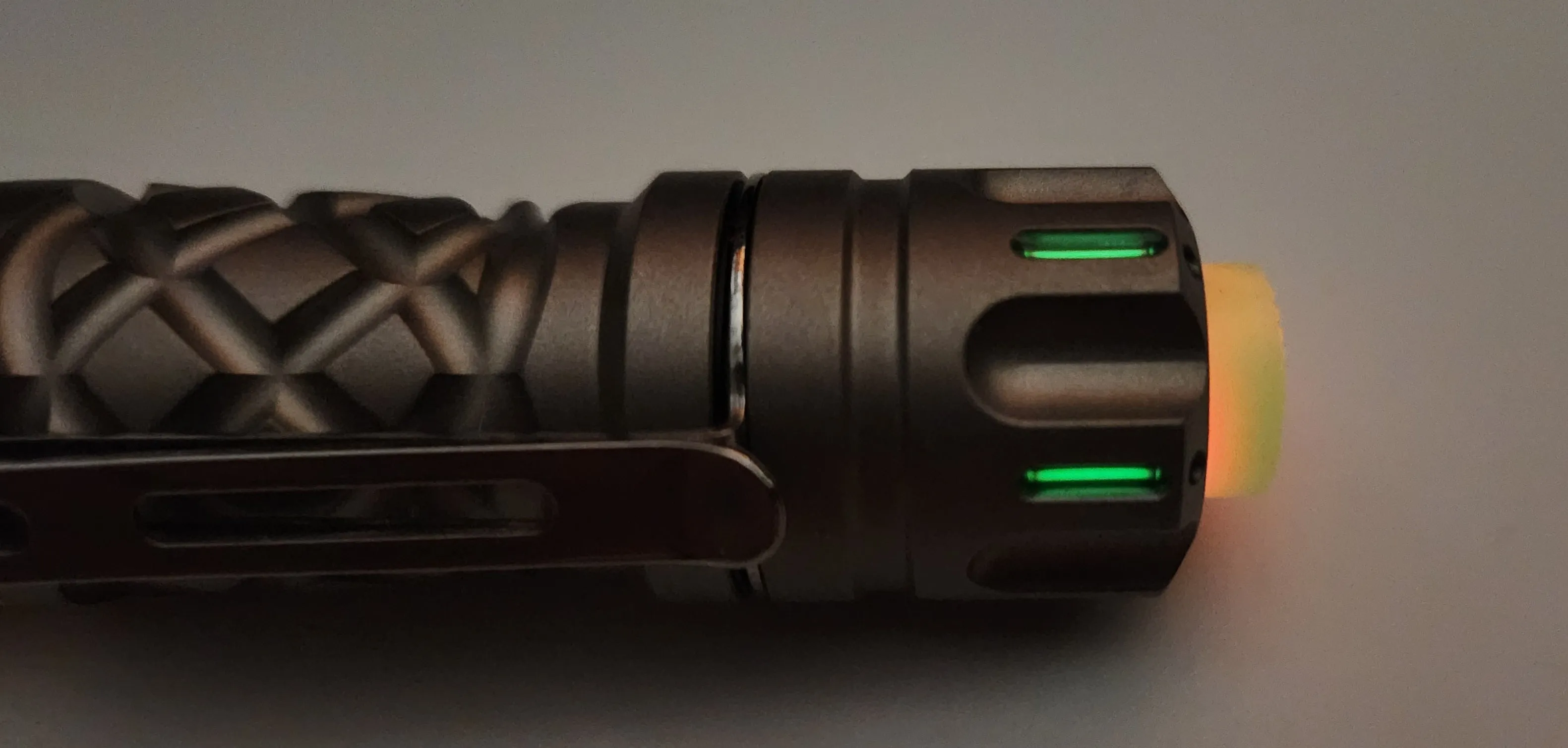

Lumintop Ant Man Titanium

 Battery: 14500 button tops recommended some flat tops will work the Thor Mini is direct drive a higher current batter will get max output min 2A battery. Some protected button tops are too long I recommend an unprotected cell

Specifications:

 ANSI/NEMA FL1 LOW HIGH Strobe

OUTPUT 80 Lumen 300 Lumen 200 Lumen

Runtime 1H 10MIN 2M 58M /

INTENSITY 122600cd (Max)

DISTANCE 700m (Max)

IMPACT RESISTANCE 1m

WATERPROOF IPX-8, underwater 2m

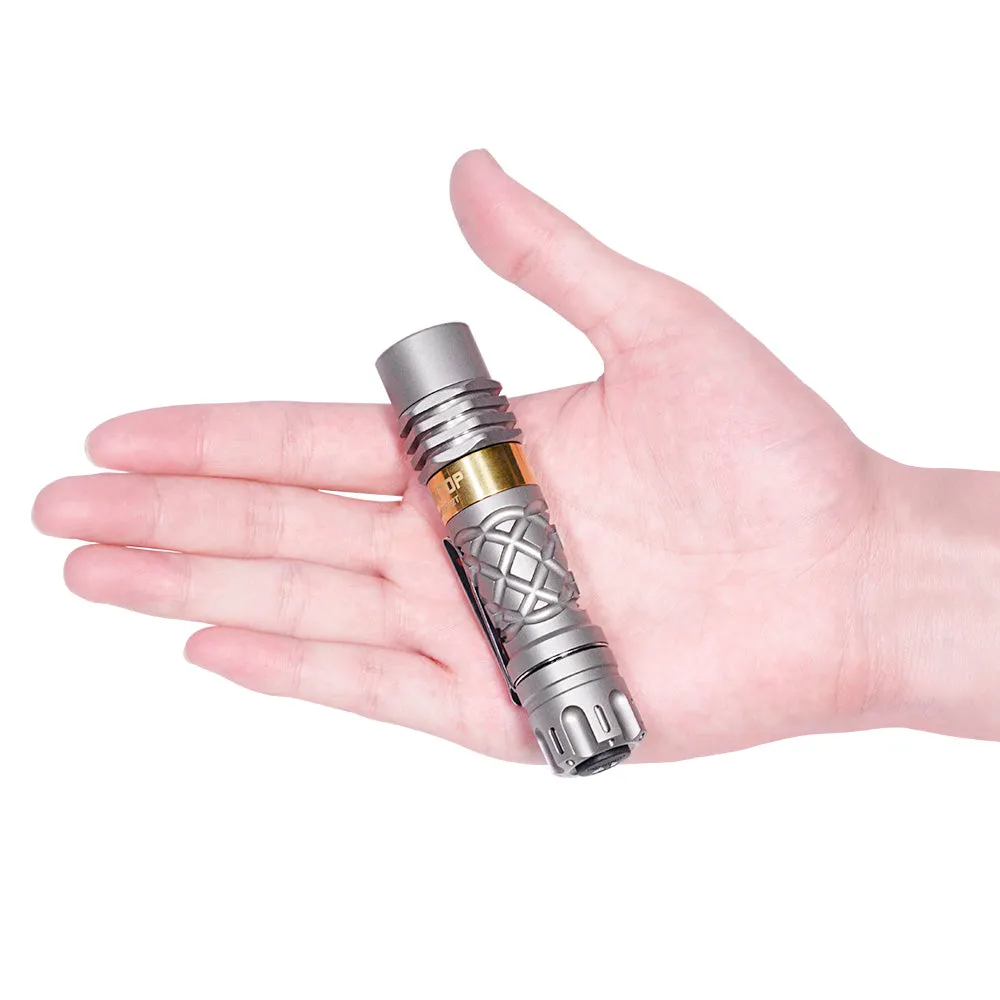

SIZE 101*22*20mm (Length*Head Ø*Tube Ø)

NET WEIGHT 90g (Titanium)

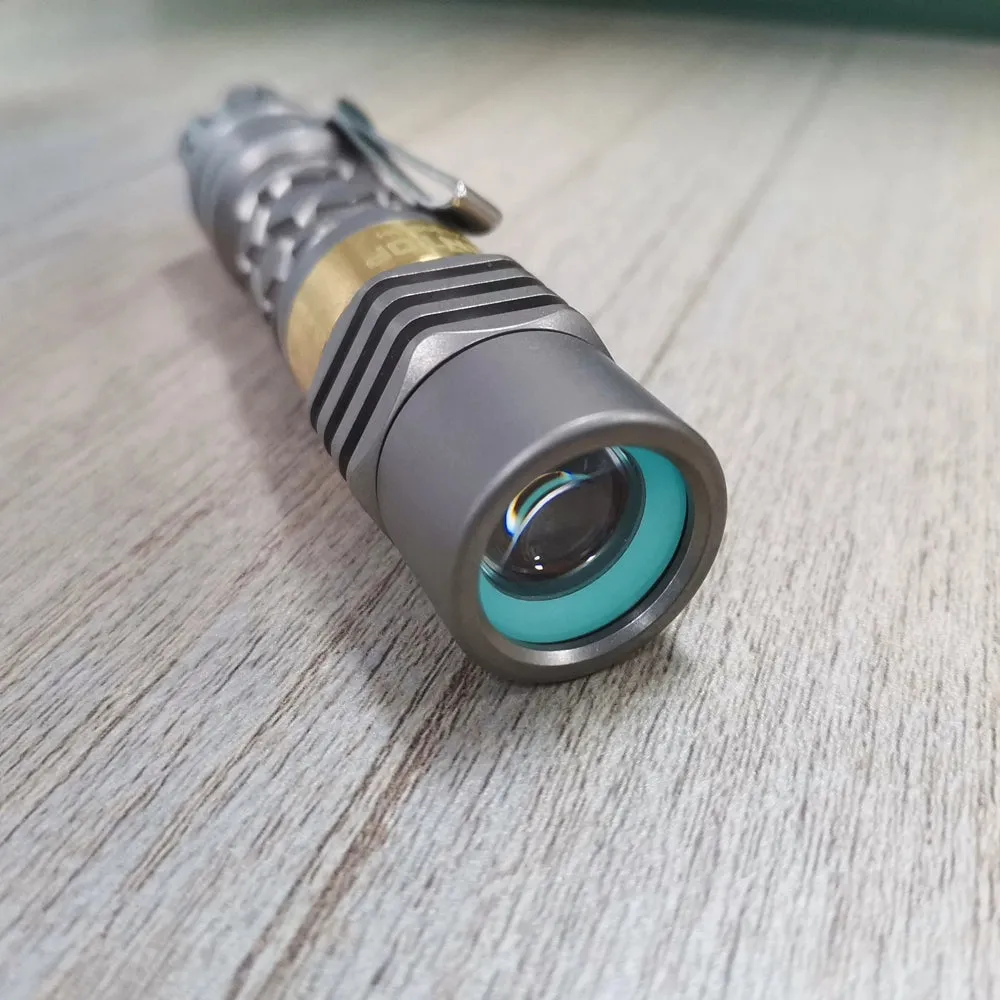

LIGHT SOURCE White Laser Emitter

POWER 8.4W (Max)

BATTERY 1 X 14500 Li-ion (excluded)

Notice: The above appropriate parameters are lab-tested by using a 14500 Li-ion battery, it may vary due to the difference of environments and batteries. The runtime on High is accumulated due to the over-heat protection setting.

Operation Instruction

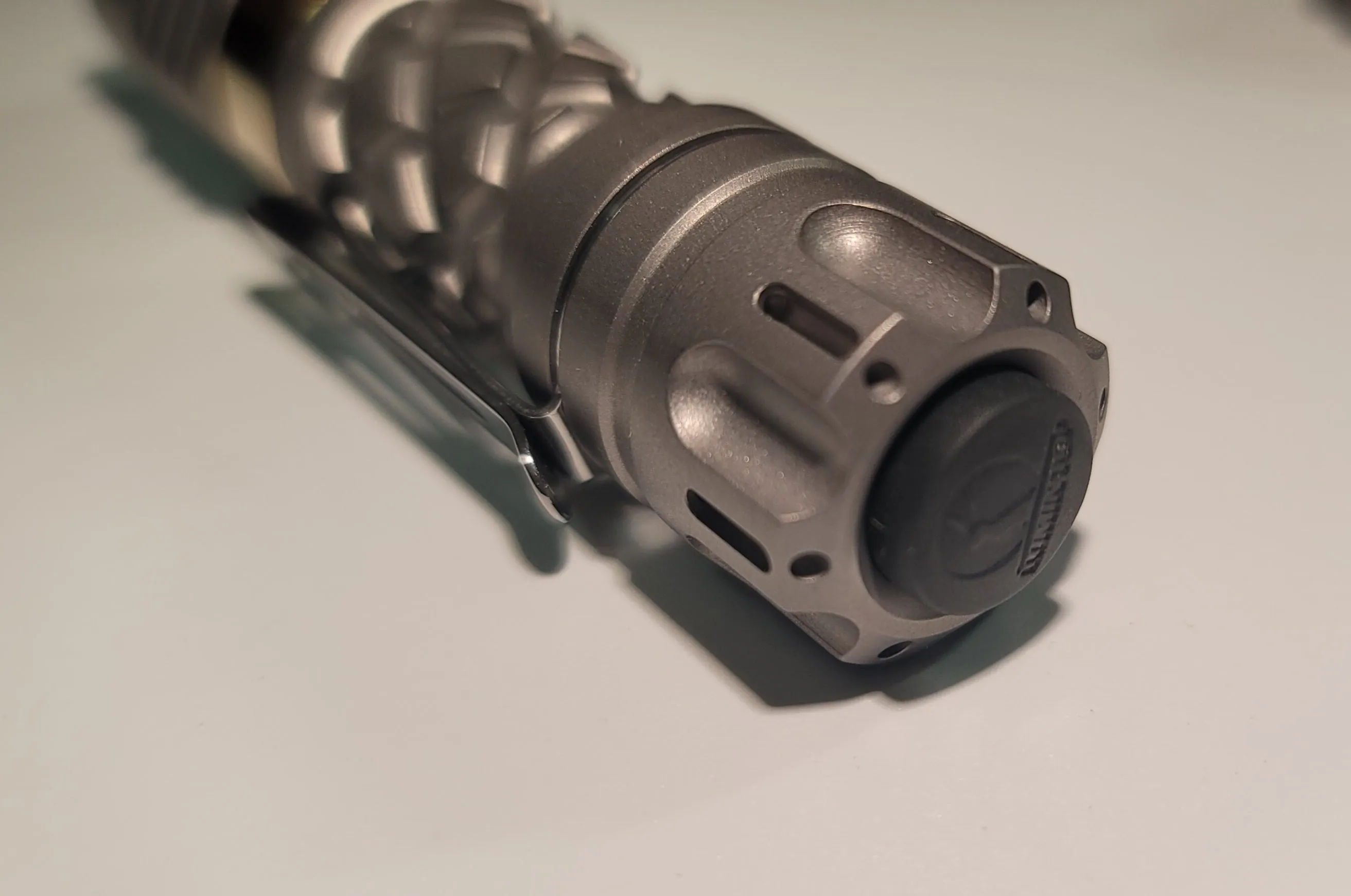

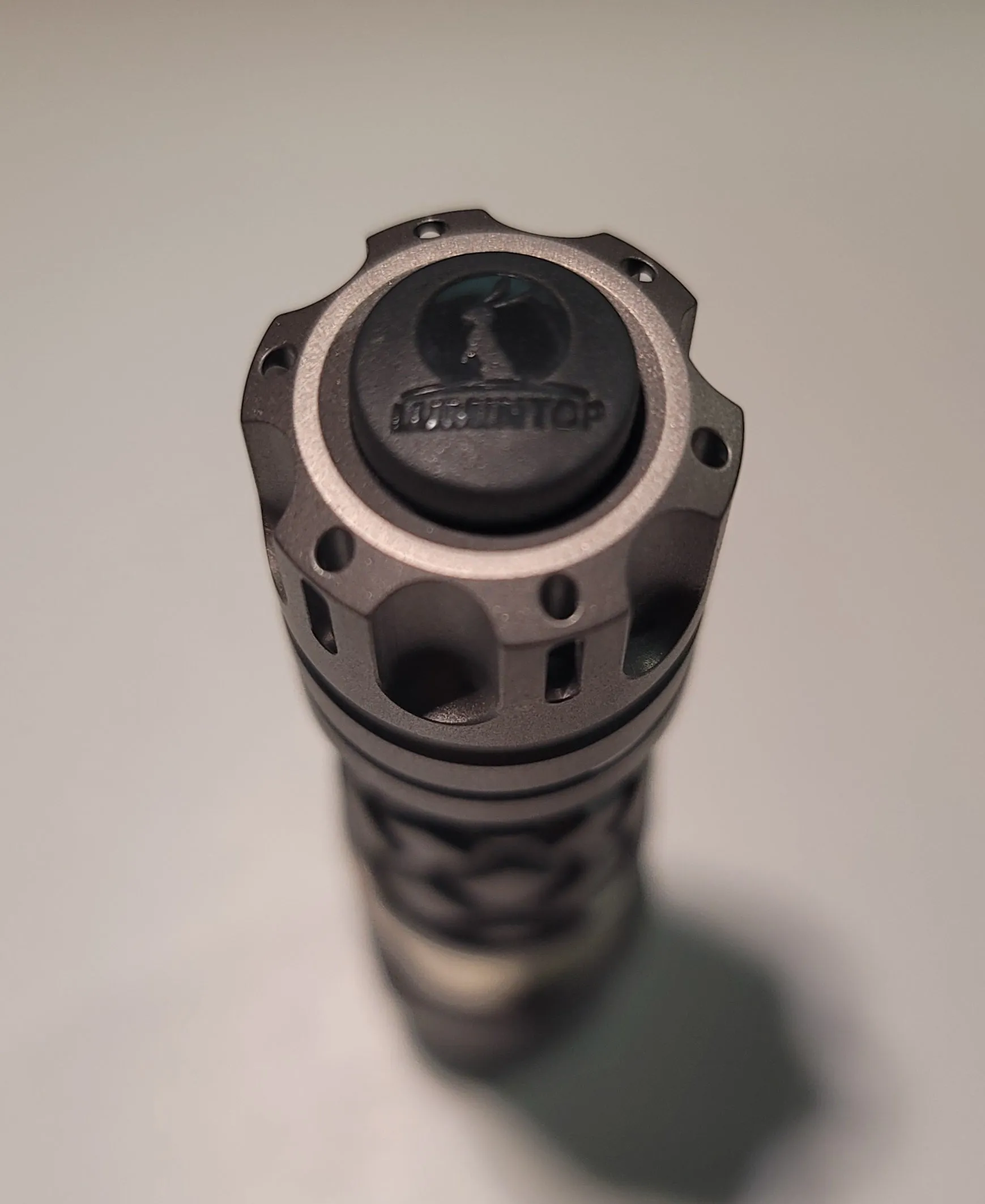

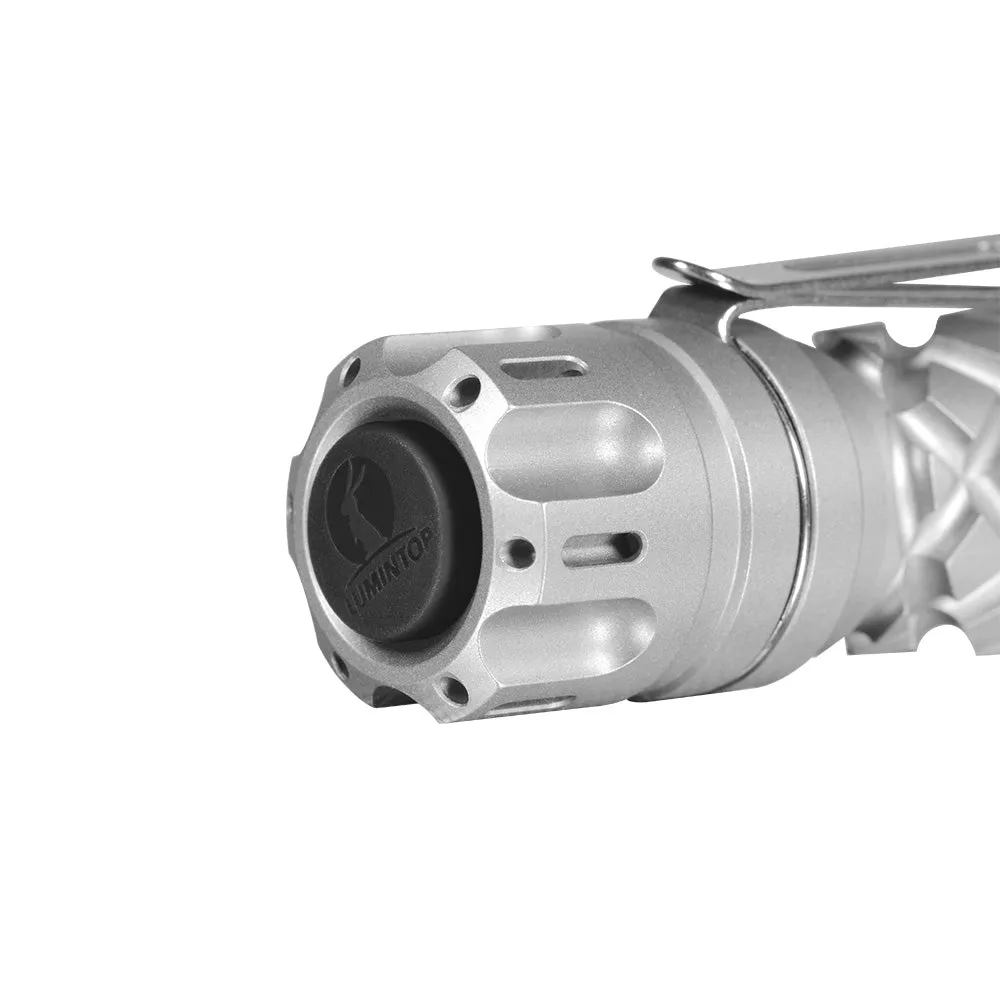

ON/ OFF: Fully press the switch

Momentary ON: Half-press from OFF until released

Output change: Continuously half-press the switch (interval more than 0.5S) to change outputs, fully press to lockout the selected output. Mode memory is available after turning off for 3 seconds except for strobe modes.

Strobe: Two quick clicks the switch from ON.

Police Strobe: Continuously 6 taps the switch from ON.

The battery in the options is the Lumintop 3.7V/920mAh 14500 Li-ion with a built-in USB charging port.
