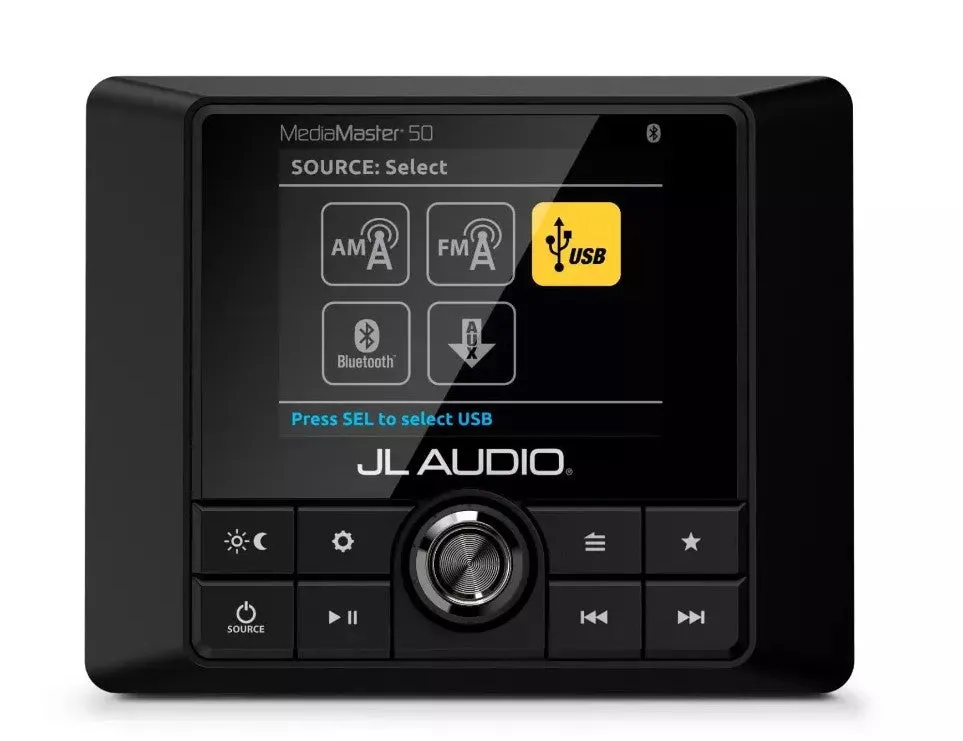

MediaMaster® - Full-featured, weatherproof marine source unit with full color LCD display - 25 Watts x 4 @ 4 Ω
The MediaMaster® 50 is a high-performance, single-chassis, powered source unit, engineered to deliver outstanding fidelity and advanced audio features on your boat, UTV and many other outdoor applications.
Equipped with a variety of mechless audio source options, the MM50 includes a Digital AM/FM Tuner, Bluetooth® connectivity, a USB connection for a USB drive or iPhone® and an Analog AUX input, all designed to ensure non-stop playback of your favorite soundtracks, no matter how bumpy the ride. A rugged, weatherproof (IP66 rated) chassis houses a 2.8-inch full-color LCD display, with separate Day/Night lighting themes for visibility, even in bright sunshine. When in motion, you will also appreciate the clean, uncluttered user interface with big text and large backlit controls.
Audio output options include a rock-solid, onboard amplifier, capable of powering your speakers with 100 watts (25W RMS x 4 @ 4 ohms) of break-through sound, as well as six channels of audiophile-quality preamp outputs from two independent main zones, plus a dedicated subwoofer zone. Each zone has its own flexible audio options and is controlled by a configurable master volume knob for quick, on-the-fly level adjustments, giving you complete command of volume levels in different areas of your boat.
With certified NMEA-2000® connectivity, the MM50 is also an ideal partner to your Garmin, Lowrance, Raymarine or Simrad Multifunction Display! (MFD)
General Specifications
Input Operating Voltage 10 - 16 VDC
Standby Current Draw 100 mA
Operating Current Draw 15 A
Recommended Fuse Value 15 A
Remote Turn-on Capacity 500 mA (max)
Operating Temperature Range -4 F to 158 F (-20 C to 70 C)
Display Size / Type 2.8-inch / TFT LCD backlighted
Display Resolution 320 x 240
Output Channels Zones 1&2: Two stereo pairs of RCA plugs (4V RMS) Sub: One mono pair of RCA plugs (4V RMS)
Output Zones Zones 1&2: Variable, Fixed or Off Sub: 500 Hz Low-Pass only
Maximum Output Voltage 4V RMS (Variable), Selectable 4V/2V/1V RMS (Fixed)
