Take Your Raptor Experience to the Next Level

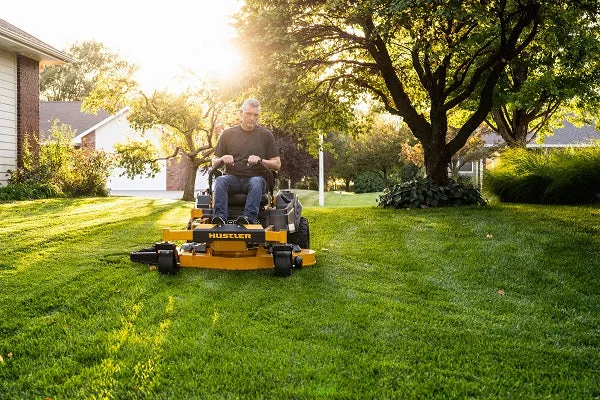

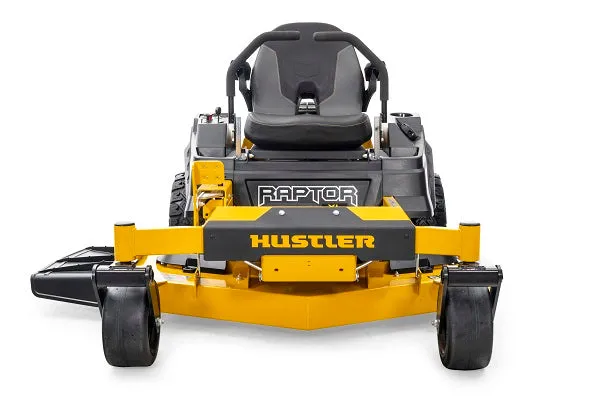

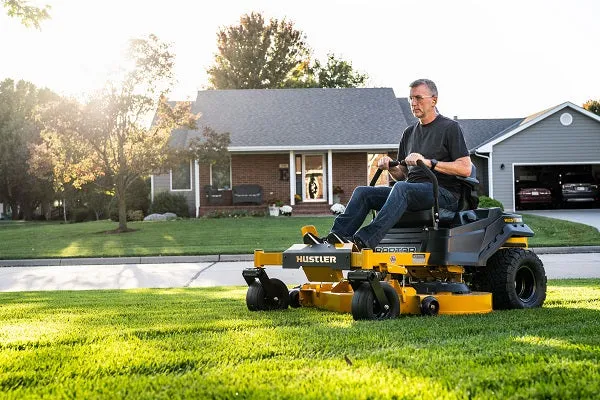

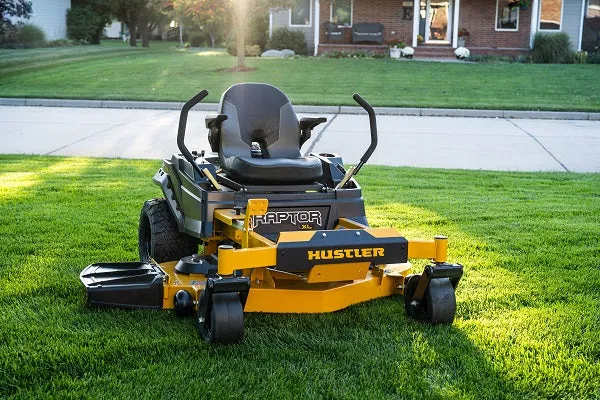

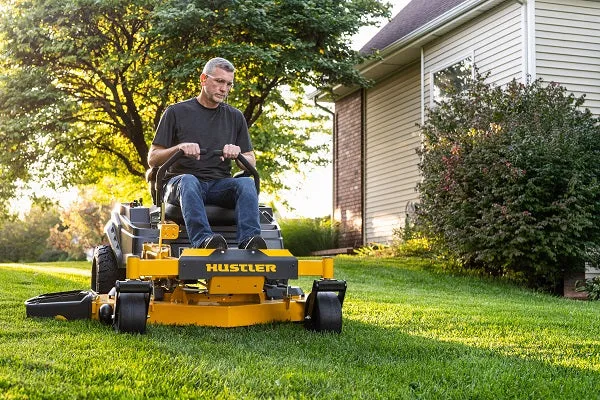

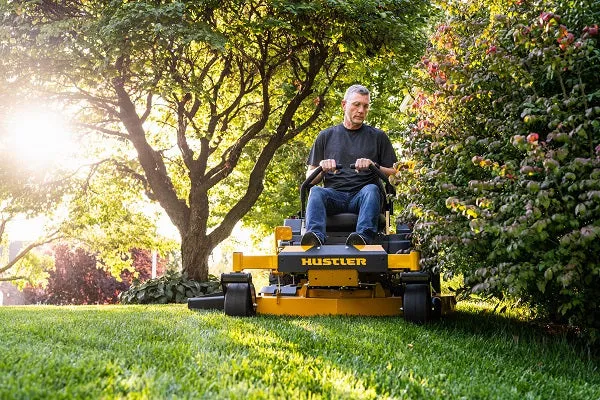

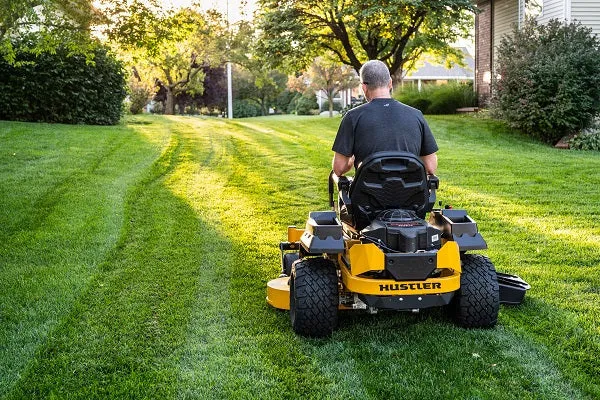

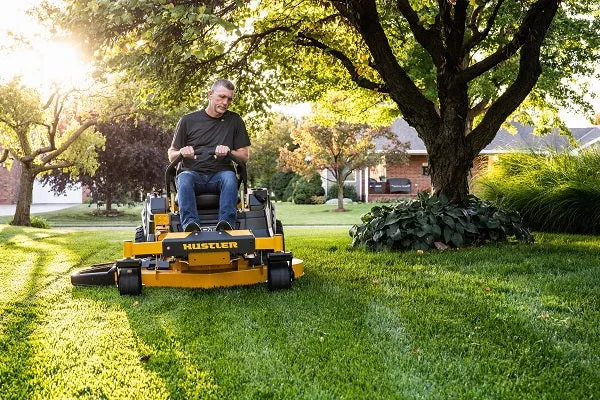

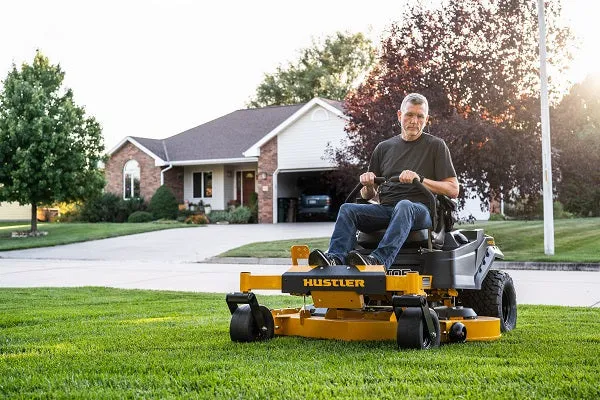

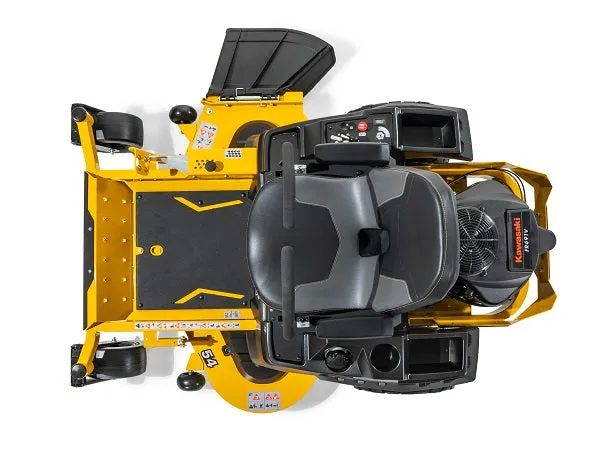

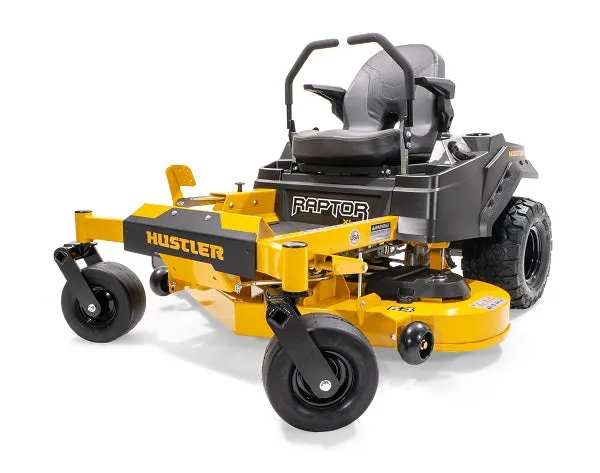

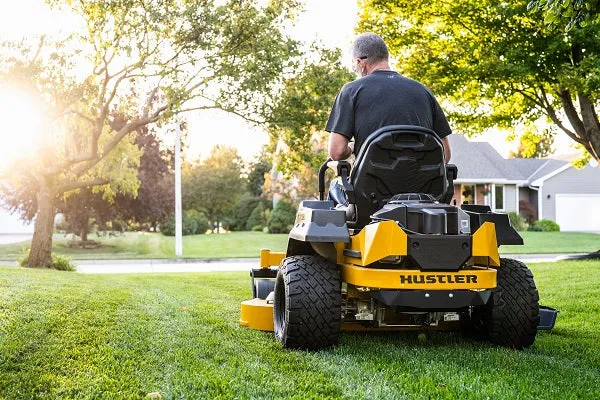

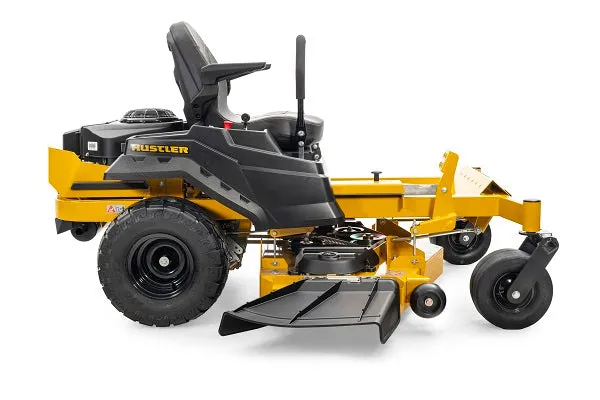

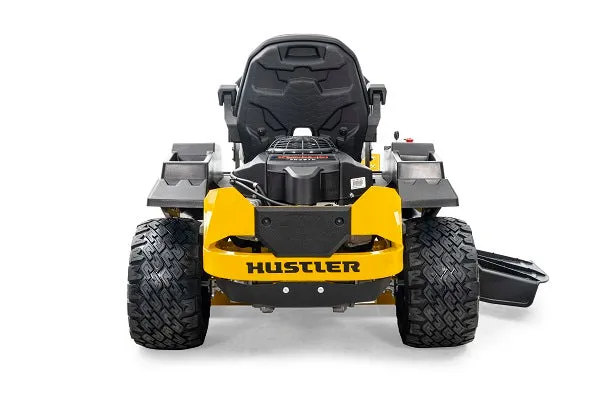

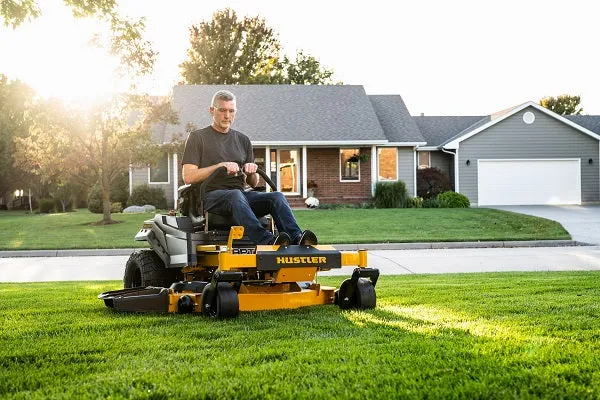

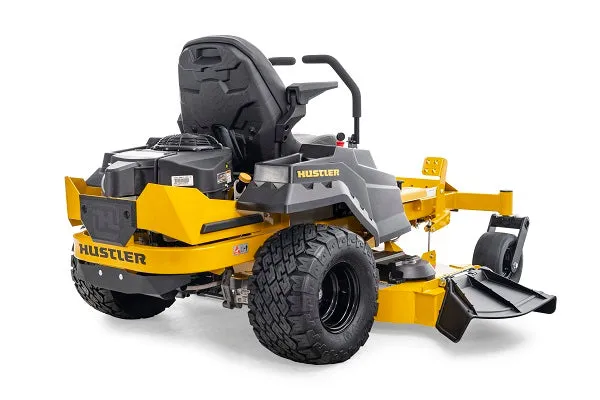

The Hustler Raptor XL 54" zero turn lawn mower features premium upgrades to the Raptor X. The XL provides some added comfort with a more premium seat and flex forks for a smoother ride. Also, there is an additional horsepower option with a 23hp Kawasaki FR Engine. More comfort and more power backed by an industry-leading 3yr / 300hr warranty.
- Flex Forks: Standard on the XL, these flexing front forks cushion the ride for a more comfortable mowing experience.
- Welded Steel Deck: 11 ga. welded fabricated steel deck adds durability & extends the mower’s life. (compare to other brand’s cheap stamped decks)
- Wider Stance: Additional operator platform width provides more room and comfort for the operator
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. You will fully understand SmoothTrak steering when you drive ours and then drive theirs.
- Premium Seat: Compared to the Raptor X seat, the XL seat features a higher back and added padding with the same armrests and airflow to the back.
- Rubber Floor Mat: Adds comfort by reducing vibration on the operator's feet and is standard on all Raptor models.
- Premium Residential Frame: Continuous one-piece 1½ inch by 3 inches welded tubular frame not seen on any other residential mower. #1 in Class
- Foot-Operated Deck Lift: Easily adjust the deck height between 1.5” - 4.5” with less effort than hand-operated levers found on other brands.
- Easy to Service: Flip-up seat pan, removable floor pan, vented pulley covers.
- Exclusive BigBite™ rear tires: Hustler worked directly with the tire manufacturer on this design. You will not find them anywhere else.
- Premium Power: The V-Twin Kawasaki® engine is the highest-rated residential engine available.
Hustler Raptor XL Accessories |
|
| 2 Bag Catcher | |
| Mulching Kit 54" |
|
| USB Kit | |
| Light Kit |
|
| Stripe Kit 54" |
|
| Hitch Kit | |
| Steering Lever Extension Kit |
|
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FR691 |
| Engine Horsepower | 23 |
| Displacement | 726cc |
| Cooling | Air Cooled |
| Engine Warranty | 3 year |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear ZT-2200 |
| Fuel Capacity | 3 gal. |
| Ground Speed (Fwd) | Up to 7 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 54" |
| Cutting Height | 1.5" to 4.5" |
| Deck Depth | 4.5" |
| Deck Lift | Foot Operated |
| Number of Blades | 3 |
| Blade Length | 18.50" |
| Blade Tip Speed | 18,600 |
| Spindles | Aluminum w/ 1" shaft and double lip sealed ball bearings |
| Deck Engagement | Ogura GT1.5 |
| Deck Material | Fabricated 11 gauge steel |
| Spindle Mounts | Reinforced 7 gauge steel |
| Impact Trim Area | 1/4" x 1" steel bar |
Construction |
|
| Frame | 1.50" X 3" steel tubing |
| Front Axle | Fabricated with sealed ball bearings |
| Front Caster Wheel | Sealed ball bearings |
| Front Caster Fork | FlexFork® |
General |
|
| Seat | Premium bolstered high-back seat with armrests and built-in lumbar support |
| Cup Holder | Yes |
Dimensions |
|
|
Front Tire (Inches) |
11 X 6 |
| Drive Tire (Inches) | 18 X 10.5-8 BigBite™ |
| Weight (lbs) | 594 |
| Height (Inches) | 42.6 |
| Length (Inches) | 71.7 |
| Width w/ Chute Up (Inches) | 58.6 |
| Tire-to-Tire Width (Inches) | 46.5 |
| Productivity (Acres Per Hour) | 3.05 |
Warranty |
|
| Warranty | 3 Year/300-hour residential |
Dimensions with Catcher |
|
| Catcher Style | 2-bag |
| Powered / Non-powered | Non-powered |
| Catcher Capacity | 5.4 bushel |
| Mower Length w/ Catcher | 91.4 |
| Mower Width w/ Catcher | 69.5 |
If you have any questions about the Hustler Raptor XL 54" mower for sale, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
