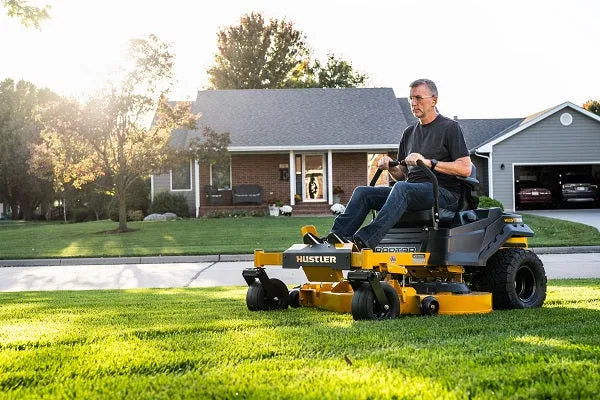

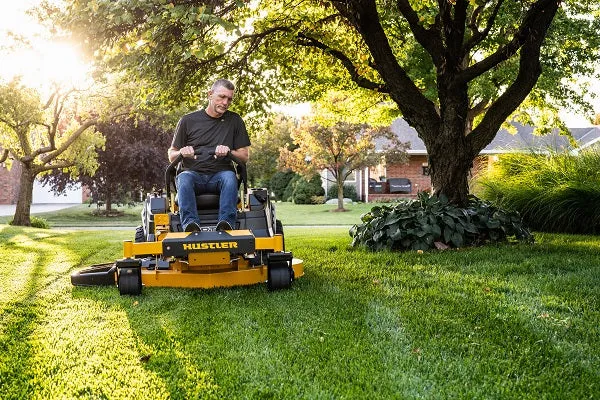

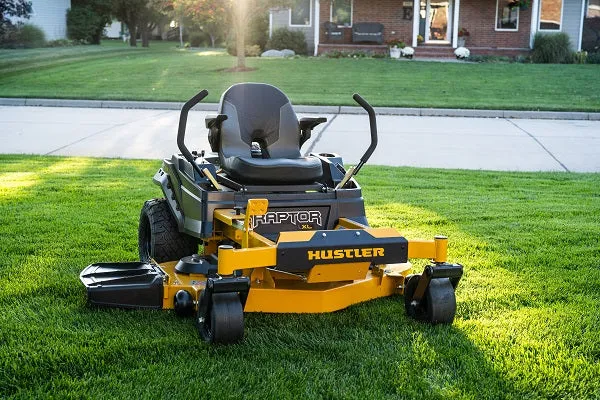

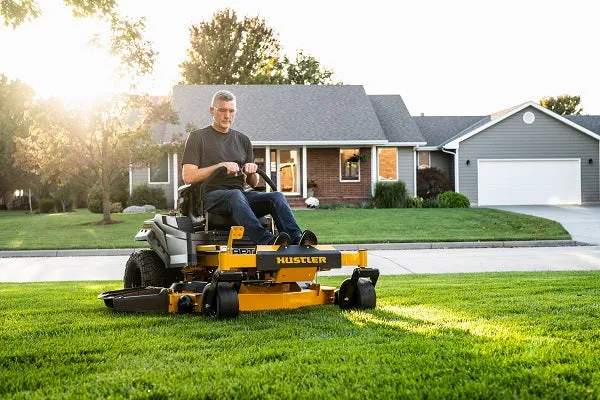

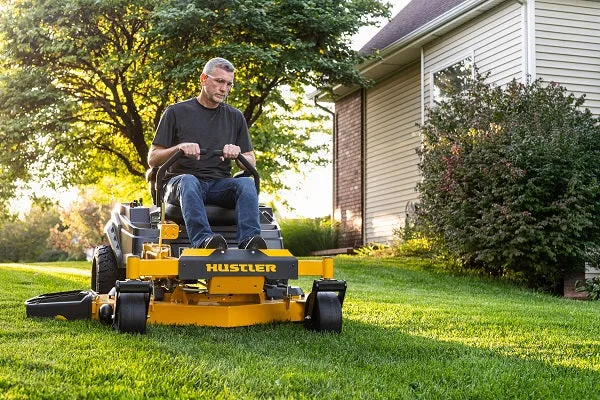

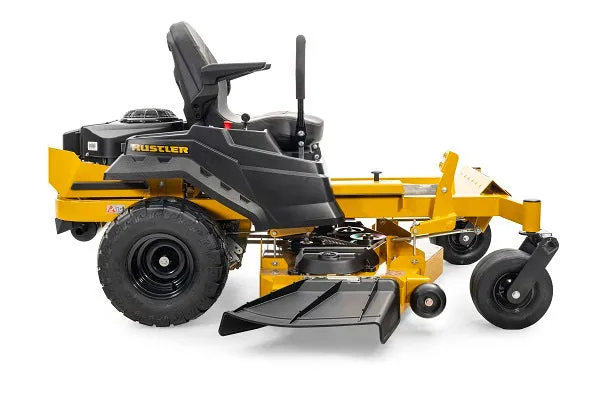

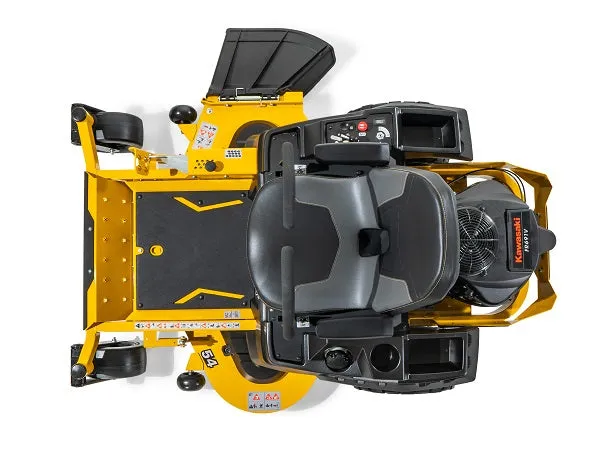

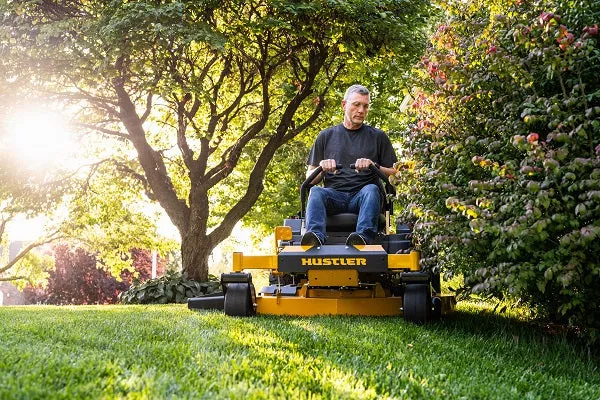

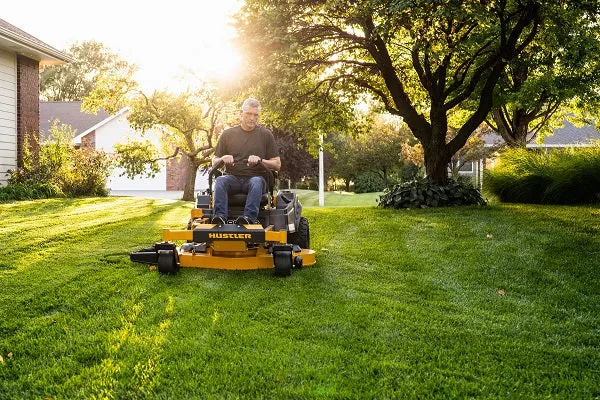

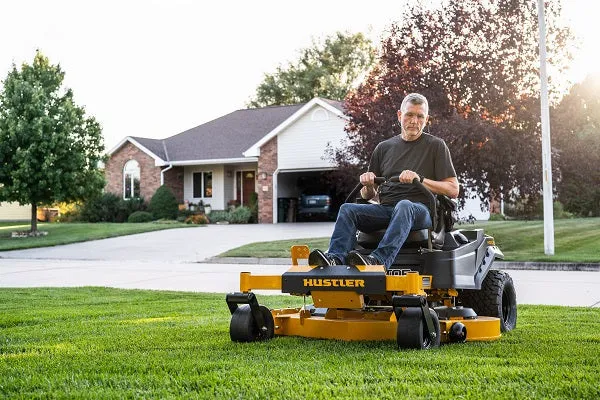

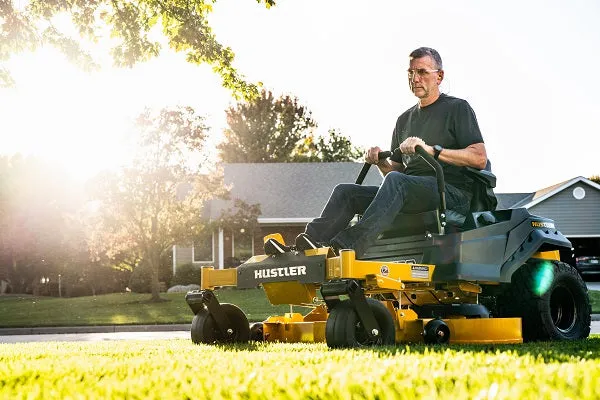

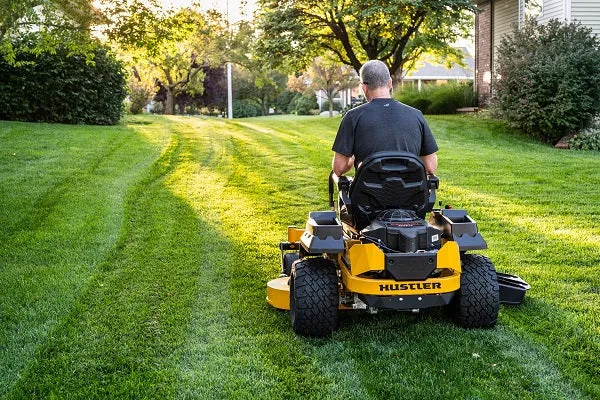

Take Your Raptor Experience to the Next Level

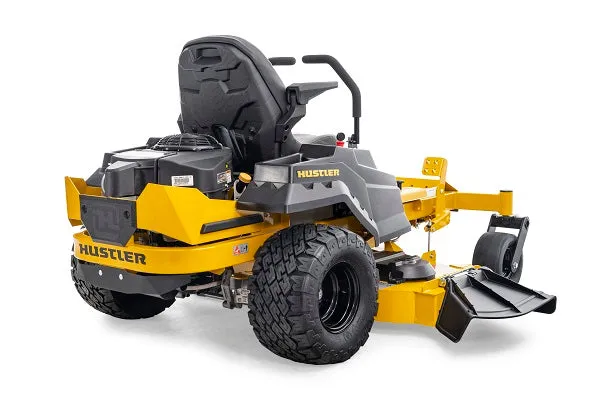

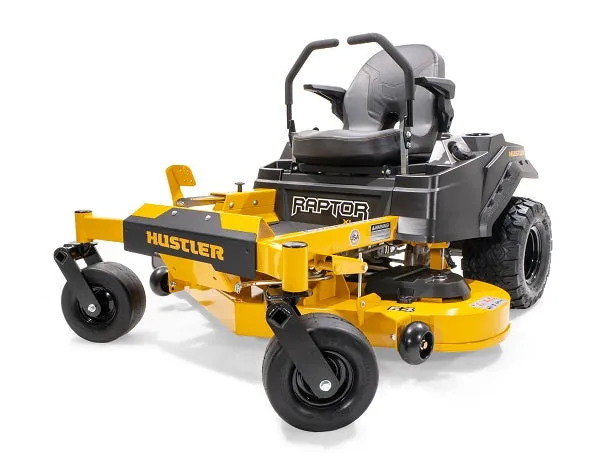

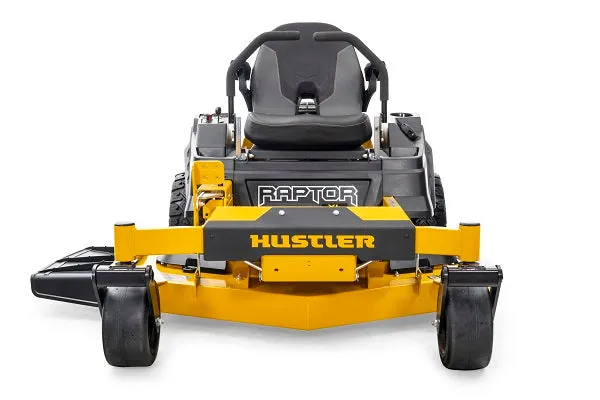

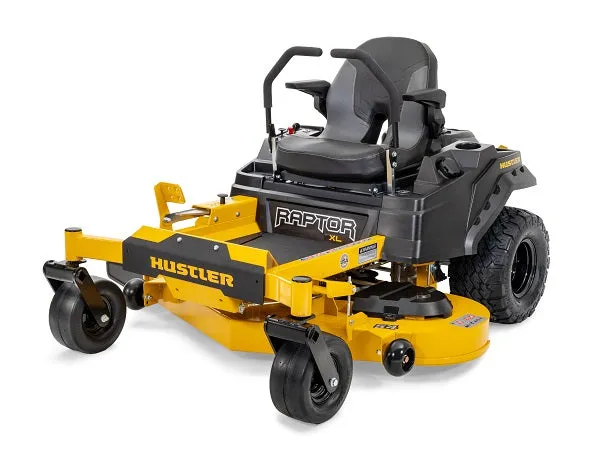

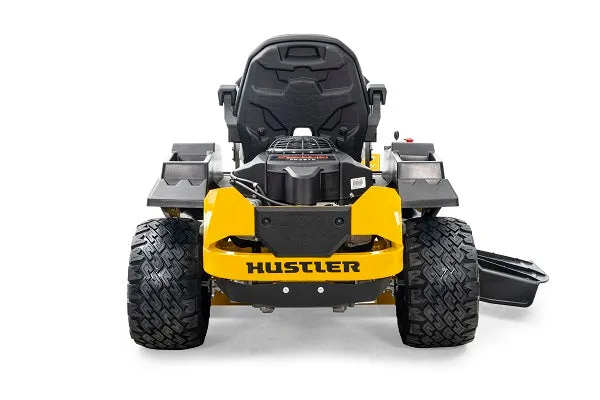

The Hustler Raptor XL 42" features premium upgrades to the Raptor X. The XL provides some added comfort with a more premium seat and flex forks for a smoother ride. Also, there is an additional horsepower option with a 23hp Kawasaki FR651 Engine. More comfort and more power backed by an industry-leading 3yr / 300hr warranty.
- Flex Forks: Standard on the XL, these flexing front forks cushion the ride for a more comfortable mowing experience.
- Welded Steel Deck: 11 ga. welded fabricated steel deck adds durability & extends the mower’s life. (compare to other brand’s cheap stamped decks)
- Wider Stance: Additional operator platform width provides more room and comfort for the operator
- SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. You will fully understand SmoothTrak steering when you drive ours and then drive theirs.
- Premium Seat: Compared to the Raptor X seat, the XL seat features a higher back and added padding with the same armrests and airflow to the back.
- Rubber Floor Mat: Adds comfort by reducing vibration on the operator's feet and is standard on all Raptor models.
- Premium Residential Frame: Continuous one-piece 1½ inch by 3 inches welded tubular frame not seen on any other residential mower. #1 in Class
- Foot-Operated Deck Lift: Easily adjust the deck height between 1.5” - 4.5” with less effort than hand-operated levers found on other brands.
- Easy to Service: Flip-up seat pan, removable floor pan, vented pulley covers.
- Exclusive BigBite™ rear tires: Hustler worked directly with the tire manufacturer on this design. You will not find them anywhere else.
- Premium Power: The V-Twin Kawasaki® engine is the highest-rated residential engine available.
Hustler Raptor XL Accessories |
|
| 2 Bag Catcher | |
| Mulching Kit 42" | |
| USB Kit | |
| Light Kit |
|
| Stripe Kit 42" |
|
| Hitch Kit | |
| Steering Lever Extension Kit |
|
__________________________________________________________________
Specifications
Engine |
|
| Engine Manufacturer | Kawasaki FR651 |
| Engine Horsepower | 21.5 |
| Displacement | 726cc |
| Cooling | Air Cooled |
| Engine Warranty | 3-year warranty |
Drive System |
|
| Type | Dual Hydrostatic |
| Transmission | Hydro-Gear ZT2200 |
| Fuel Capacity | 3 gal. |
| Ground Speed (Fwd) | Up to 7 mph |
| Parking Brake |
Integrated with steering levers
|
Deck |
|
| Cutting Width | 42" |
| Cutting Height | 1.5" to 4.5" |
| Deck Depth | 4.5" |
| Deck Lift | Foot Operated |
| Number of Blades | 2 |
| Blade Length | 20.50" |
| Blade Tip Speed | 18,000 |
| Spindles | Aluminum w/ 1" shaft and double lip sealed ball bearings |
| Deck Engagement | Ogura GT1.5 |
| Deck Material | Fabricated 11 gauge steel |
| Spindle Mounts | Reinforced 7 gauge steel |
| Impact Trim Area | 1/4" x 1" steel bar |
Construction |
|
| Frame | 1.50" X 3" steel tubing |
| Front Axle | Fabricated with sealed ball bearings |
| Front Caster Wheel | Sealed ball bearings |
| Front Caster Fork | FlexFork® |
General |
|
| Seat | Premium bolstered high-back seat with armrests and built-in lumbar support |
| Cup Holder | Yes |
Dimensions |
|
|
Front Tire (Inches) |
11 X 5 |
| Drive Tire (Inches) | 18 X 8.5-8 BigBite™ |
| Weight (lbs) | 567 |
| Height (Inches) | 42.6 |
| Length (Inches) | 69.9 |
| Width w/ Chute Up (Inches) | 45.5 |
| Tire-to-Tire Width (Inches) | 43 |
| Productivity (Acres Per Hour) | 2.38 |
Warranty |
|
| Warranty | 3 Year/300-hour residential |
Dimensions with Catcher |
|
| Catcher Style | 2-bag |
| Powered / Non-powered | Non-powered |
| Catcher Capacity | 5.4 bushel |
| Mower Length w/ Catcher | 91.4 |
| Mower Width w/ Catcher | 56.5 |
If you have any questions about the Hustler Raptor XL 42" mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
