Warranty
- 3 Year Limited, 300-hour residential
- 1 Year Limited, 100-hour residential
- 3 Year Limited Engine
|
Commercial Quality Residential Mower For Tough Jobs

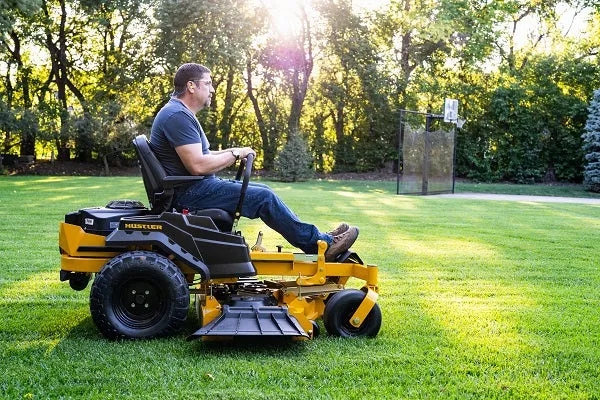

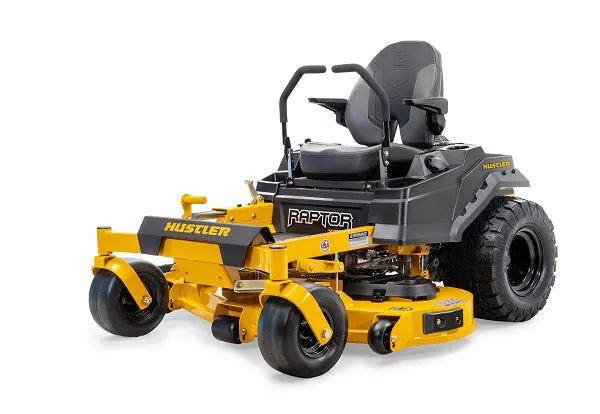

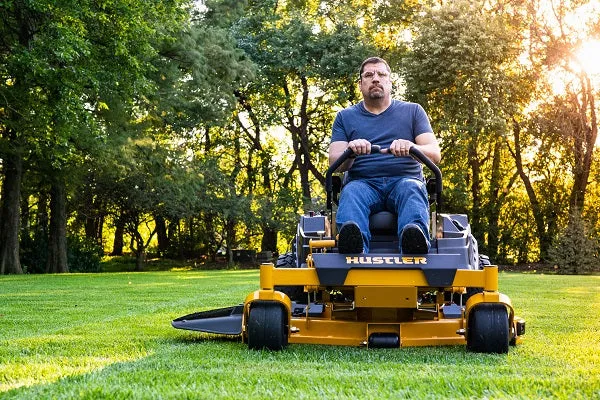

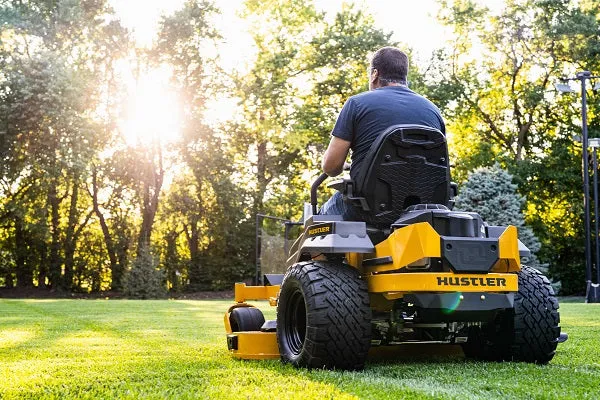

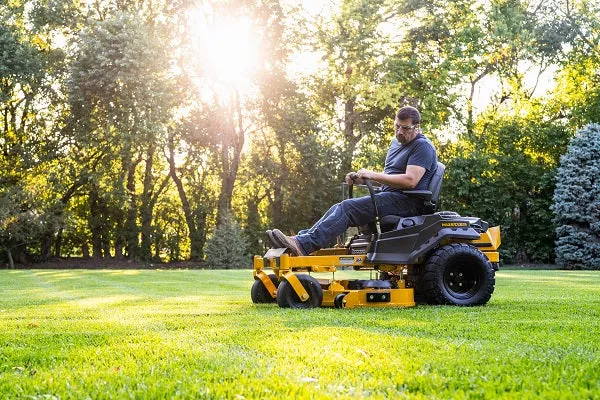

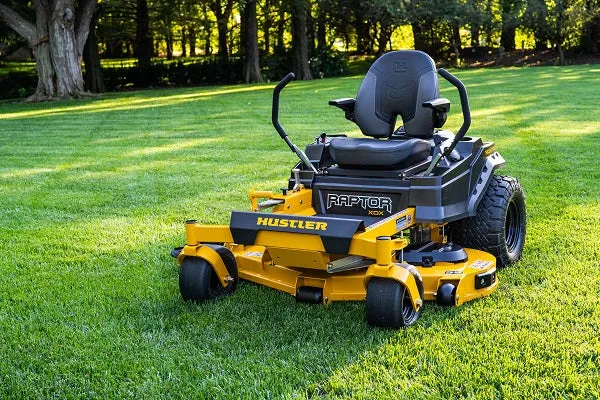

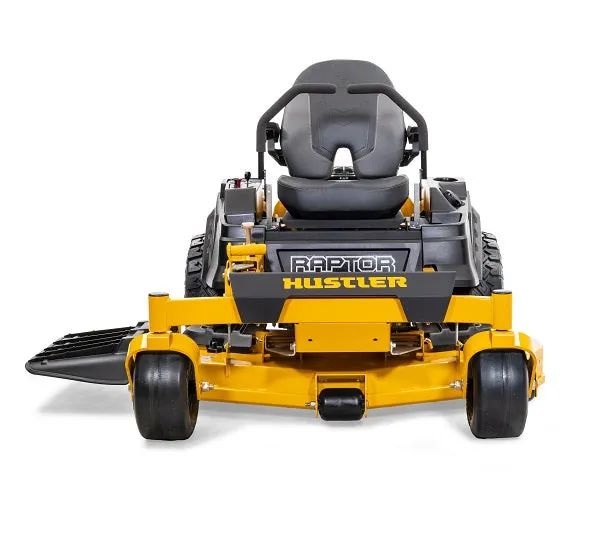

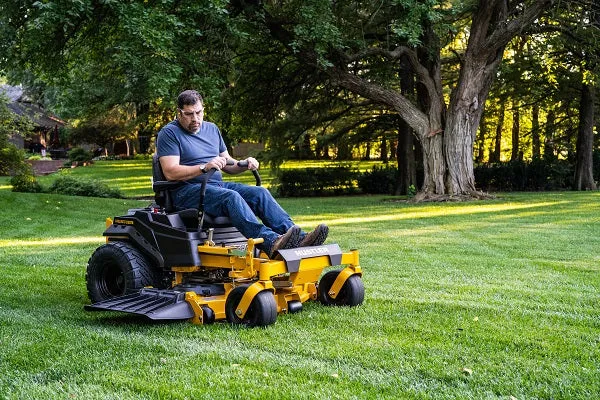

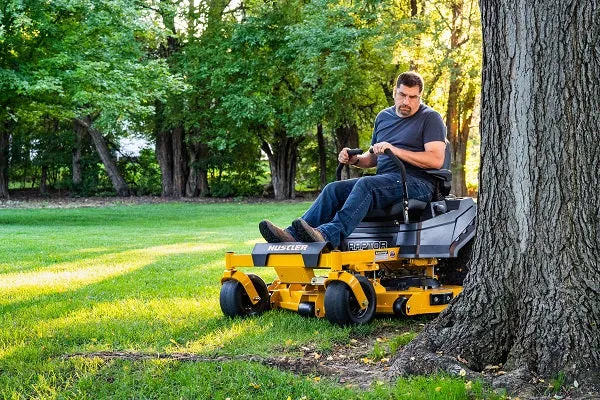

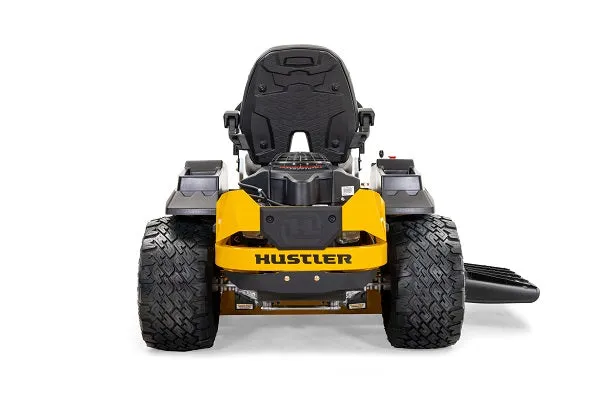

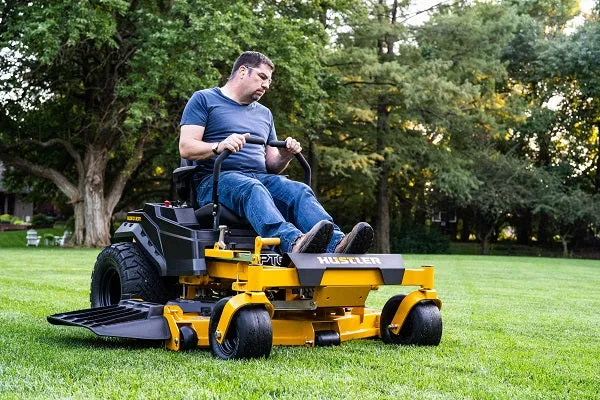

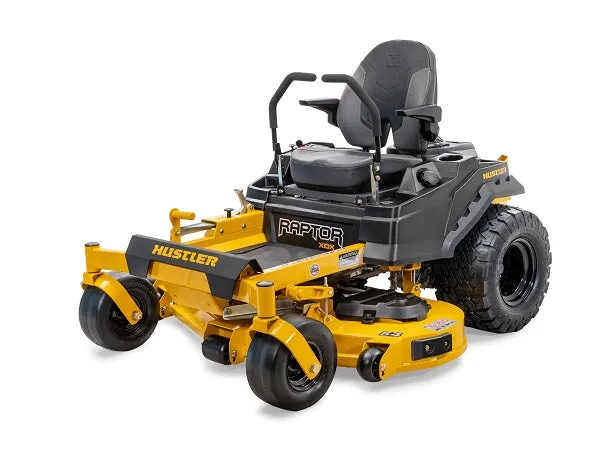

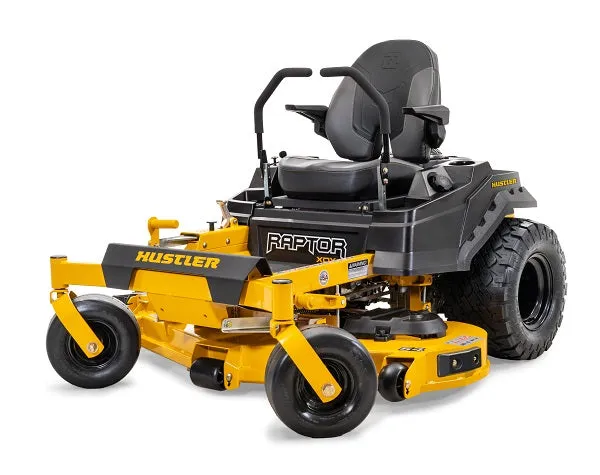

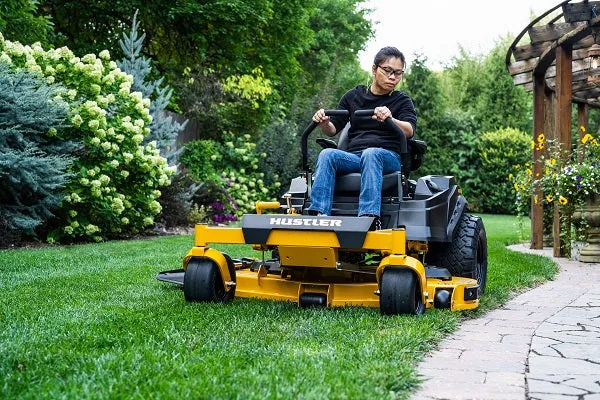

The Hustler Raptor XDX 60" is at the top of the residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and tool-less removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck allows the XDX to mow through thick grass at top speeds. The heavy-duty XDX is backed by an industry-leading 3yr / 300hr warranty and 1yr / 300hr commercial warranty.
-
Commercial Grade Deck: Heavy-duty 11 gauge steel and front bull nose bumper design for unmatched durability. Up to 60” deck sizes are available.
-
Wider Stance: Additional operator platform width provides more room and comfort for the operator
-
SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
-
Premium Seat: A premium extra high-back seat with armrests.
-
Rubber Floor Mat: Adds comfort by reducing vibration on the operator's feet and is standard on all Raptor models.
-
Premium Residential Frame: Continuous one-piece 1½ inch by 3 inches welded tubular frame not seen on any other residential mower. #1 in Class
-
Foot-Operated Deck Lift: Easily adjust the deck height between 1.5” - 4.5” with less effort than hand-operated levers found on other brands.
-
Easy to Service: Flip-up seat pan, removable floor pan, vented pulley covers.
-
Exclusive BigBite™ rear tires: Hustler worked directly with the tire manufacturer on this design. You will not find them anywhere else.
-
Premium Power: The V-Twin Kawasaki® engine is the highest-rated residential engine available.
|
Hustler Raptor XDX Accessories
|
2 Bag Catcher w/ Blower |
|
Side Steel Catcher 3.5 Bushel (no adapter needed) |
|
Side Mesh Catcher 3 Bushel (no adaptor needed) |
|
High Vacuum Kit 60" |
|
Mulching Kit 60" |
|
Flex Forks Kit |
|
Deck Lift Assist Kit |
|
USB Kit |
|
Light Kit |
|
Stripe Kit |
|
Hitch Kit |
|
Steering Lever Extension Kit |
|
__________________________________________________________________
Specifications
Engine
|
Engine Manufacturer |
Kawasaki FR730 |
Engine Horsepower |
24
|
Displacement |
726cc
|
Cooling |
Air Cooled |
Engine Warranty |
3 year |
Drive System
|
Type |
Dual Hydrostatic |
Transmission |
Hydro-Gear ZT3100
|
Fuel Capacity |
3 gal.
|
Ground Speed (Fwd) |
Up to 8 mph |
Parking Brake |
Integrated with steering levers
|
Deck
|
Cutting Width |
60"
|
Cutting Height |
1.5" to 4.5" |
Deck Depth |
5.0"
|
Deck Lift |
Foot Operated |
Number of Blades |
3
|
Blade Length |
20.50"
|
Blade Tip Speed |
18,400 |
Spindles |
Aluminum with 1" shaft and sealed ball bearings |
Deck Engagement |
Ogura GT1.5 |
Deck Material |
Fabricated 10 gauge steel |
Spindle Mounts |
Reinforced 11 gauge steel |
Impact Trim Area |
11 ga. formed channel w/ rolled edge |
Construction
|
Frame |
1.50" X 3" steel tubing |
Front Axle |
Fabricated with sealed ball bearings |
Front Caster Wheel |
Sealed ball bearings |
Front Caster Fork |
Fabricated 3/8" steel |
General
|
Seat |
Premium bolstered extra high-back seat with armrests and built-in lumbar support |
Cup Holder |
Yes |
Dimensions
|
Front Tire (Inches)
|
13 X 6.5 |
Drive Tire (Inches) |
22 x 11-10 BigBite™ |
Weight (lbs) |
710
|
Height (Inches) |
43.7 |
Length (Inches) |
71.1 |
Width w/ Chute Up (Inches) |
62.2
|
Tire-to-Tire Width (Inches) |
48.6
|
Productivity (Acres Per Hour) |
3.88
|
Warranty
|
Warranty |
3 Year/300-hour residential or 1 Year/300-hour commercial |
Dimensions with Catcher
|
Catcher Style |
2-bag |
Powered / Non-powered |
Powered |
Catcher Capacity |
7.2 bushel |
Mower Length w/ Catcher |
92.3 |
Mower Width w/ Catcher |
69.2 |
If you have any questions about the Hustler Raptor XDX 60-inch 24HP mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
