Product Details
＋
AUTEL-MV500

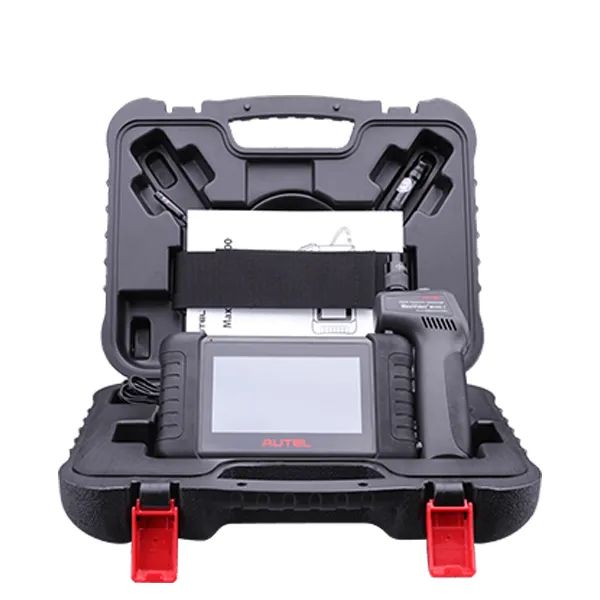

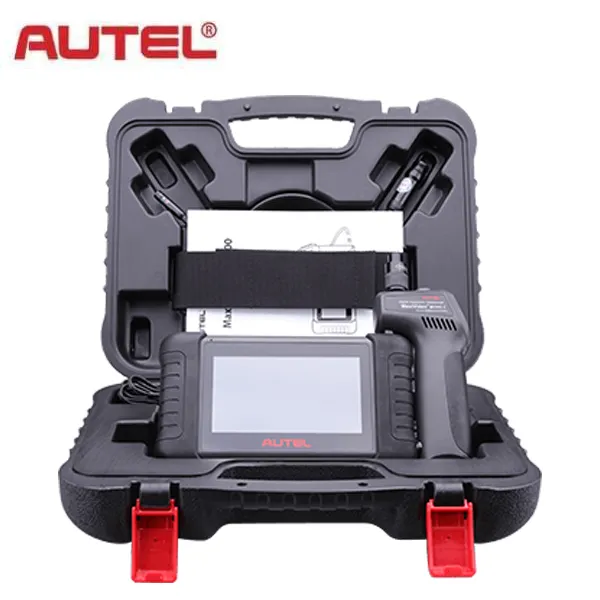

MaxiVideo MV500 is Autel's most advanced digital inspection camera to date. Its revolutionary tablet design supports wireless image transmission of up to 30 meters between the MaxiVideo MV500 display tablet and inspection scope. Along with its dual-camera cable, MaxiVideo MV500 gives technicians the freedom to work either individually or collaboratively during inspection to produce best results.
Features:
- Extraordinarily powerful Cortex-A9 quad-core processor
- 5-inch LCD capacitive touchscreen with 1280x720 resolution
- Internal reliable and fast 16GB Solid State Drive for better performance
- Unique shop tough ergonomic design features strong rubber protection and housing
- Views images in real time
- Ideal applications: water restoration, HVAC and refrigeration, electrical inspection, automotive, pest control
- Mini USB connector for uploading images and videos to a computer
- White LED to illuminate the inspection area, with illumination control
- Supports wireless image transmission of up to 30 meters between the display tablet and inspection scope
- One-year limited warranty
Specifications:
| Operating System | Android 4.4.2, KitKat |
| Processor | Tablet: RockChip RK3188 Cortex-A9 quad-core processor (1.6 GHz) Handle: Grain GM8287 processor (792 MHz ARM-based 32-bit RISC) |
| Memory | Tablet: 1GB RAM DDR3 & 16GB ROM Handle: 256MB RAM & 16MB ROM |
| Dimensions | Tablet:195.2 x 115.6 x 32.4 mm (7.7"x 4.6"x 1.3") Handle:180.2 x 73.8 x 33.6 mm (7.1"x 2.9"x 1.3") |
| Connectivity | SD card (supports up to 32GB) |
| Camera |
Rear-facing5-megapixel |
| Sensor | Gravity accelerometer |
| Power and Battery | Tablet: 3.7 V/3200 mAh lithium-polymer battery Charges via 5 VDC power supply Handle: Built-in rechargeable lithium-ion battery pack (3.7 V/2600 mAh) |
| Tested Battery Life | Tablet: Around 3.5 hours of continuous use Handle: Around 2.8 hours of continuous use |
| Battery Charging Input | 5V/3A |
| Housing | Strong plastic housing with protective rubber boot |
| Cable Reach | Handle:1 m (39.4") |
| Waterproof | Handle: To a depth of 1.6 m (63") |
| Additional Port | Handle: Mini USB “ 10 Pin |
