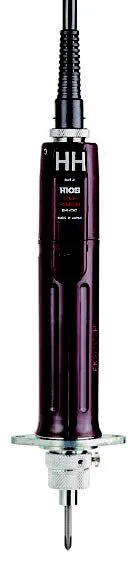

Product Details
＋
- Most suitable for automation assembly machines because it can be installed into the XY robot
- Stable torque accuracy helps uniform screw tightening for automation
- Easy to install to the existing system
- Safe and risk free low voltage DC30V
- All models have stepless torque adjustment
- RoHS compliant
Classification
- Product Group: Automation & Engineered Products
- Electric or Pneumatic: Electric
- Manual or Powered: Powered
- Low Voltage DC with Power Source or Direct Plug-in: DC
- Standard or Brushless: Standard
- ESD-Safe: No
Specifications
- Model No.: CLF-4000XH
- Drive Size: 1/4" Hex
- Drive Type: In-line
- Operation: Remote
- Torque: 0.9 to 3.1 lbf·in (1.0 to 3.5 kgf·cm) (0.1 to 0.35 N·m)
- Approximate RPM:
- 1000 @ 30VDC
- 560 @ 20VDC
- Length: 7.76"
- Dia.: 1.28"
- Weight: 15.17 oz
- Screw Size (mm);
- 1.4 to 2.6 Machine Screw
- 1.4 to 2.3 Tapping Screw
